Seco-Larm Enforcer SK-2323-SPQ Mullion-Style Outdoor Digital Access Keypad

Installation Instructions

Mounting Template

Features

• 12~24 VAC/VDC operation.
• 1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
• 2 Form C relays, each rated 1 Amp @ 30VDC.
• Each relay has programmable output time from 1~99 seconds or toggle.
• Output #2 can be programmed for use with a doorbell.
• 2 Egress inputs and 1 door sensor input.
• Backlit keys for easy nighttime use.
• 2 Multi-colored status LEDs.
• All features are programmed directly from the keypad - no need for an external programmer.
• EEPROM memory protects programmed information in case of power loss.
• Optical tamper sensor for added security.
• Circuitry is potted with epoxy for outdoor use.
• IP65 weatherproof rating, rugged aluminum construction.
• Built-in proximity card reader.
• 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code.
• Output #2 may have either a card or a code programmed for each user.

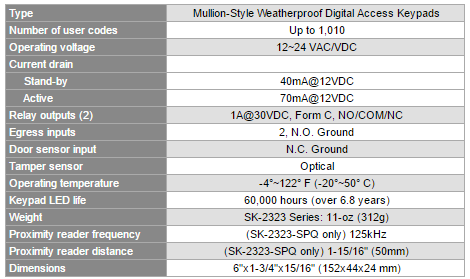

Specifications
