Description

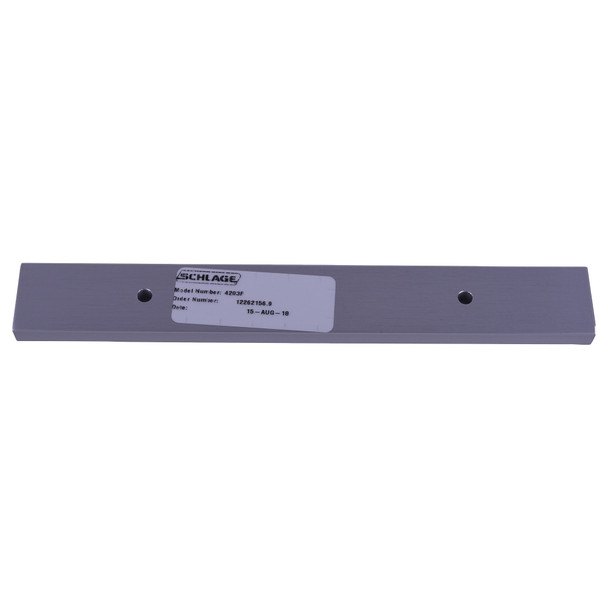

Schlage Electronics Electromagnetic Locks
Schlage electromagnetic locks are used to secure the door in conjunction with push bars, request-to-exit devices, or credential readers for fail-safe applications when code compliance permits. You can use them on a single standalone door or as part of an access control system. Electromagnetic locks do not contain moving parts, making them extremely durable and preferred for high security applications
M400 Series electromagnetic locks
As a robust line of electromagnetic locks, the M400 Series has unique design elements that make them easy to install and secure.
- Auto voltage selection is standard
- Plus package (P) adds magnetic bond sensor, relocking time delay, door status monitor
- Optional mounting kits available including: top jamb mount, double and glass door
- Certifications
- UL 1034, UL 10C 3 hour fire rating
BHMA Grade 1:
- M420 – 500 lb. hold force for traffic control
- M450 – 1000 lb. hold force for high security
- M490 – 1500 lb. hold force for max security
Electromagnetic specialty locks
Schlage’s electromagnetic specialty locks provide flexibility for a variety of applications. They offer a depth of features and a proven record of performance.
M490DE: Delays egress with 15 second timer: includes integrated alarm
- Designed to meet NFPA 101 & BOCA, UL 10C 3 hr fire rating, UL 294, and BHMA 1500 lb. hold force
M490G: Gate lock is weather resistant for exterior swinging and sliding gates
- BHMA 1500 lb. hold force rated
GF3000: Concealed locking mechanism enhances security and appearance
- UL 10C 3 hr fire rating, BHMA 1500 lb. hold force
320M: MiniLine is mortise designed for interior sliding doors
- UL 10C 3 hr fire rating, UL 1034 listed
40/70 Series electromagnetic locks
Ease of installation makes the 40/70 Series a perfect choice for retrofit applications. It is also easy to select and stock. Magnetic bond sensor and door status monitor standard.
UL 10C 1 hour fire rating and BHMA Grade 1:
- 40 Series - 500 lb. hold force
- 70 Series - 1000 lb. hold force
M390RFK
Designed to retrofit Locknetics 390+ without any additional prep.
- Door position switch, magnetic bond sensor and relocking time delay.
- ANSI/BHMA A 156.25 Grade 1 1500 lb. hold force
- UL 10C 3 hour fire rating
