Description

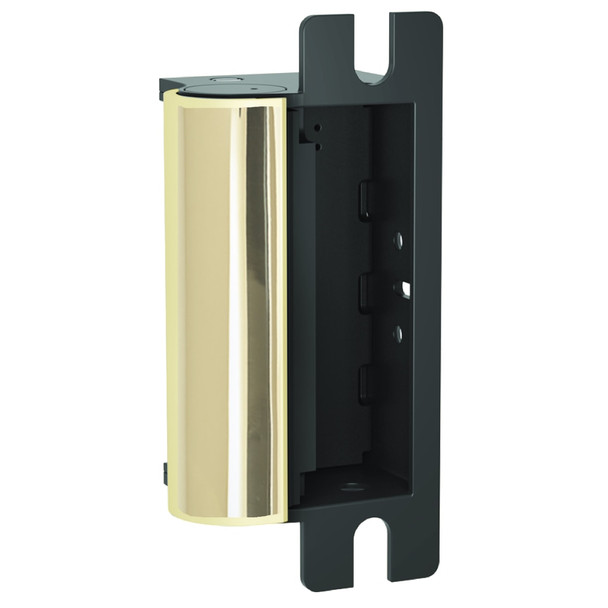

The HES 1006 is a heavy-duty electric strike built for high-security commercial and institutional doors. Featuring dual interlocking plungers and stainless steel construction, it solves access control challenges for facilities requiring fail-secure locking with maximum durability and tamper resistance.
Compatible with ANSI 4-7/8 inch strike plates and deadbolts up to 1 inch, the 1006-605-LBM operates on 12 or 24VDC with a plug-in connector for straightforward installation. As an authorized HES dealer, E.D. Locks provides expert guidance on setup, keying, and latchbolt monitoring options. Contact our team at sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Static Strength: 2,500 lbs (fail secure)
- Dynamic Strength: 350 ft-lbs (fail secure)
- Endurance: 1,000,000 cycles
- Voltage: 12 or 24VDC continuous duty
- Current Draw: 0.45A at 12VDC / 0.25A at 24VDC
- Finish: 605 - Bright Brass
- Mounting: Metal or Wood frame
- Optional Feature: LBM (Latchbolt monitor)
- Non-handed, internally mounted solenoid
- Accommodates up to 1 inch deadbolt
- 27 interchangeable faceplate options
- Warranty: Five year limited
