Description

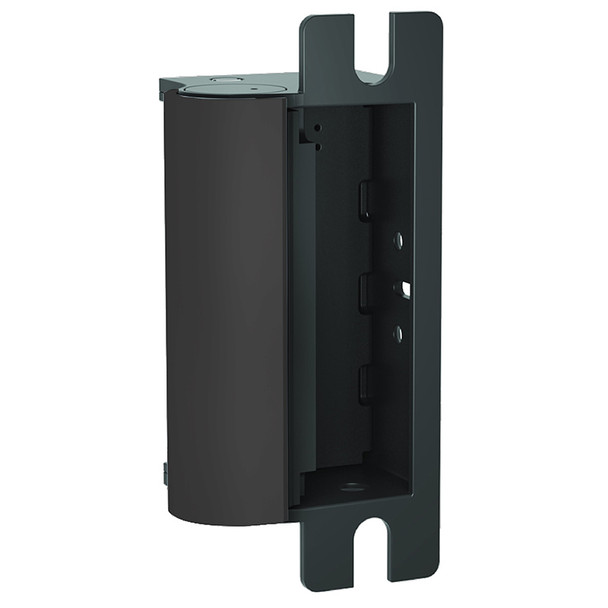

The HES 1006 is a heavy-duty electric strike for metal and wood frames, engineered for maximum security and reliability. Ideal for commercial properties and high-traffic facilities, it solves the need for a fail-secure strike that meets or exceeds ANSI standards while accommodating virtually any ANSI 4-7/8" strike plate lock.
The 1006 accepts 12 or 24VDC continuous duty power and supports up to 1" deadbolts with non-handed installation. It ships with full keeper shims for horizontal adjustment and a plug-in connector for easy setup. As an authorized HES dealer, E.D. Locks provides expert guidance on keying, voltage selection, and faceplate compatibility. Contact sales@edlocks.com or 1-877-207-6067 for assistance choosing the right configuration for your application.
Specifications
- Static Strength: 2,500 lbs. (fail secure)
- Dynamic Strength: 350 ft-lbs. (fail secure)
- Endurance: 1,000,000 cycles
- Power: 12VDC at 0.45A or 24VDC at 0.25A continuous duty
- Voltage Ripple: Less than 1 volt RMS required
- Construction: Stainless steel with dual interlocking plunger design
- Deadbolt Capacity: Up to 1 inch
- Installation: Non-handed, metal or wood frame
- Available Finishes: 630 satin stainless, 605 bright brass, 606 satin brass, 612 satin bronze, 613 bronze toned, 629 bright stainless, BLK black
- Faceplate Options: 27 interchangeable choices
- Warranty: Five year limited
- Optional: Fail safe, latchbolt monitor (LBM), latchbolt strike monitor (LBSM)
