Description

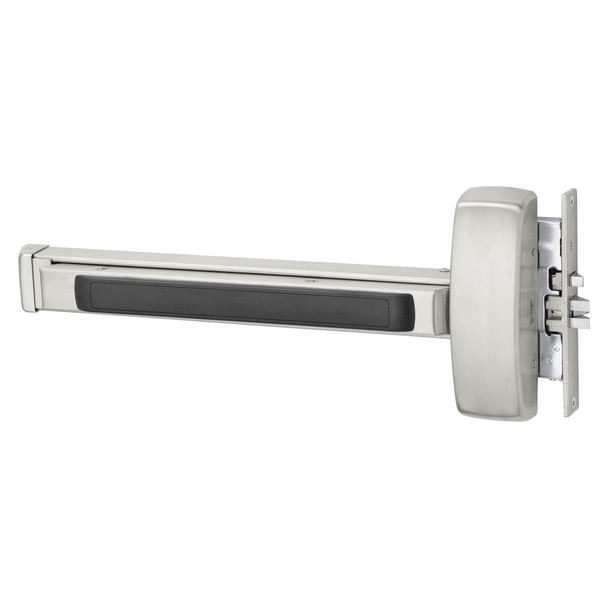

The Sargent 80 Series mortise exit device delivers Grade 1 security for wood or metal doors in commercial and institutional facilities. Built for durability and low maintenance, this right-hand reverse mortise unit handles 1 3/4" thick doors with E-rail configuration (24"–32" width), eliminating the need for cutting on standard 32" doors. Ideal for applications requiring reliable egress control that meets ANSI/BHMA standards.
Installation suits wood or metal doors with minimum 4 1/2" stile width. The modular design with few moving parts reduces upkeep and supports optional features such as delayed egress, alarmed exit, and electric latch retraction. As an authorized Sargent dealer, E.D. Locks provides expert guidance on configuration and compatibility. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification confirmation and support.
Specifications
- Model: 12-8906E RHR 32D
- Series: 80 Series
- Configuration: Mortise
- Handing: Right-Hand Reverse
- Door Compatibility: Wood or metal, 1 3/4" (44mm) thick
- Door Width Range: 24" to 32" (61cm to 81cm) with E Rail
- Minimum Stile Width: 4 1/2" (114mm)
- Standard Width: 32" (no cutting required)
- Grade: ANSI/BHMA Grade 1
- Optional Features: Delayed egress, alarmed exit, electric latch retraction
