Description

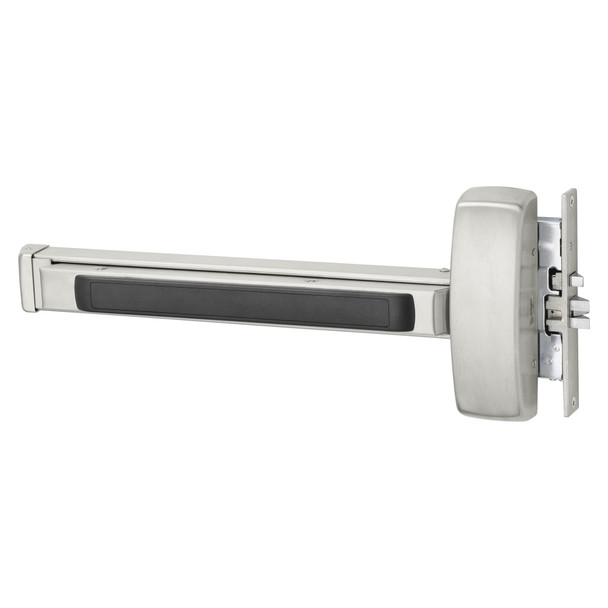

The Sargent 80 Series 12-8928E mortise exit device delivers Grade 1 security for wood and metal doors in high-traffic facilities. Designed for durability and low maintenance, this left-hand reverse model suits standard 1-3/4" thick doors with 4-1/2" minimum stiles. Modular construction means fewer moving parts and longer service life.
The E Rail configuration fits doors 24" to 32" wide with no cutting required for 32" openings. This mortise unit supports delayed egress, alarmed exit, and electric latch retraction options for specialized applications. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert configuration guidance and to verify compatibility with your specific door and frame.
Specifications
- Brand: Sargent
- Model: 12-8928E LHR 32D
- Type: Mortise Exit Device, 80 Series
- Handedness: Left-Hand Reverse (LHR)
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2"
- Rail Type: E Rail
- Door Width Range: 24" to 32" (61cm to 81cm)
- Standard Size: 32" (no cutting required)
- Grade: ANSI/BHMA Grade 1
- Compatible Door Types: Wood or metal
