Description
The Sargent 80 Series exit device is a heavy-duty push bar mechanism for commercial facilities demanding superior security and reliability. Ideal for wood or metal doors 1-3/4 inches thick, this Grade 1 certified device features modular construction with minimal moving parts, ensuring maintenance-free operation and lasting performance across high-traffic environments.

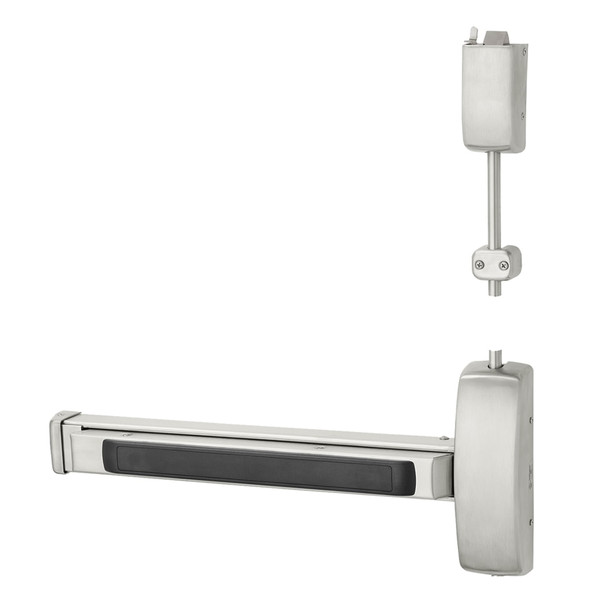

The 12-NB8706E model is configured for right-hand reverse (RHR) doors up to 32 inches wide using an E Rail. Compatible with doors 1-3/4 to 2-1/4 inches thick (specify thickness for thicker doors). Requires 4-1/2 inches minimum stile with trim. For expert guidance on installation, configuration options, or delayed egress and alarmed variants, contact E.D. Locks sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Series: 80
- Model: 12-NB8706E
- Configuration: ETB RHR 32D (E Rail, Top & Bottom rod, Right-Hand Reverse, 32-inch door)
- Door Thickness: 1-3/4 inches (44mm)
- Door Width: 24 to 32 inches (E Rail); 32-inch doors require no cutting
- Minimum Stile: 4-1/2 inches with trim; 3-1/2 inches without trim
- Door Types: Wood or metal
- Grade: ANSI/BHMA Grade 1
- Options Available: Delayed egress, alarmed exit, electric latch retraction
