Description

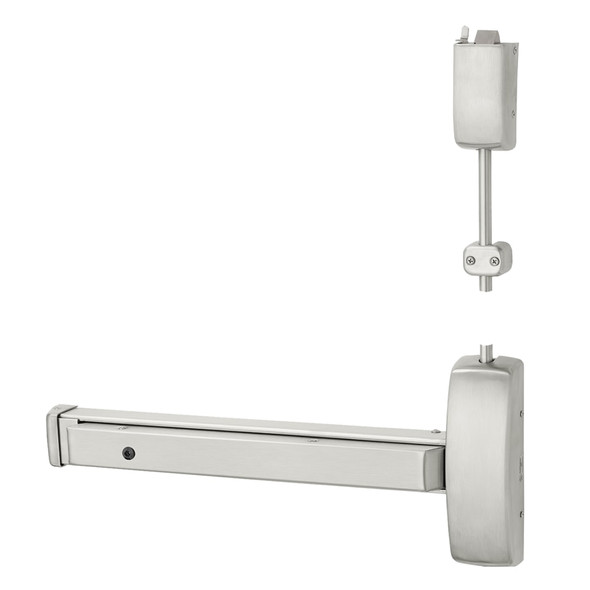

The Sargent 80 Series 12-NB8740E is a heavy-duty exit device engineered for commercial and institutional facilities demanding maximum security and durability. With modular construction, few moving parts, and ANSI/BHMA Grade 1 performance, it provides maintenance-free operation and reliable egress control for wood or metal doors 1-3/4 inches thick.
This left-hand reverse (LHR) model fits door widths 24-32 inches with the E Rail and requires no cutting for standard 32-inch doors. Designed for 4-1/2-inch minimum stile with trim, it installs on rim or mortise configurations. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for compatibility verification, installation support, and access to factory-authorized pricing and technical resources.
Specifications
- Model: 12-NB8740E ETF
- Configuration: LHR (Left-Hand Reverse)
- Rail Type: E Rail
- Door Width Range: 24-32 inches
- No-Cut Size: 32 inches
- Door Thickness: 1-3/4 inches (44mm)
- Minimum Stile: 4-1/2 inches (114mm) with trim
- Grade: ANSI/BHMA Grade 1
- Applicable Door Types: Wood or metal
