Description

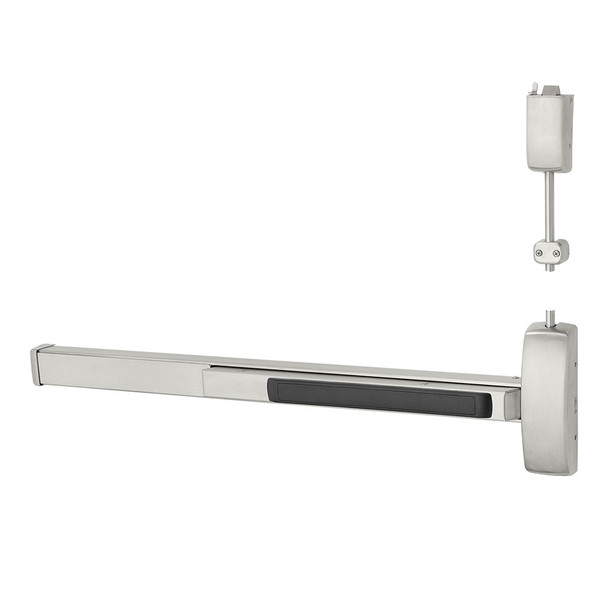

The Sargent 80 Series exit device is a heavy-duty panic bar built for wood and metal doors in high-traffic commercial and institutional facilities. It solves the critical need for ANSI/BHMA Grade 1-compliant egress hardware that withstands decades of use without failure, protecting life safety while minimizing maintenance costs.
This rim-mounted model fits doors 24-32 inches wide and 1.75 inches thick; wider doors require alternate rail configurations (F, G, or J). The LHR designation indicates left-hand reverse prep. Modular construction with delayed egress, alarm, and electric latch retraction options available for specialized applications. Contact an authorized E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for configuration guidance and expert installation support.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 12-NB8743J LHR 32D
- Configuration: Rim-mounted
- Prep: Left-hand reverse (LHR)
- Rail type: E Rail (32D = 32-inch door, no cutting required)
- Door thickness: 1.75 inches (44 mm)
- Door width range: 24-32 inches (61-81 cm)
- Minimum stile width: 4.5 inches (114 mm) with trim, 3.5 inches (89 mm) without trim
- Door types: Wood or metal
- Grade: ANSI/BHMA Grade 1
- Finish: 32D (Satin Stainless Steel)
- Options: Delayed egress, alarmed exit, electric latch retraction
