Description

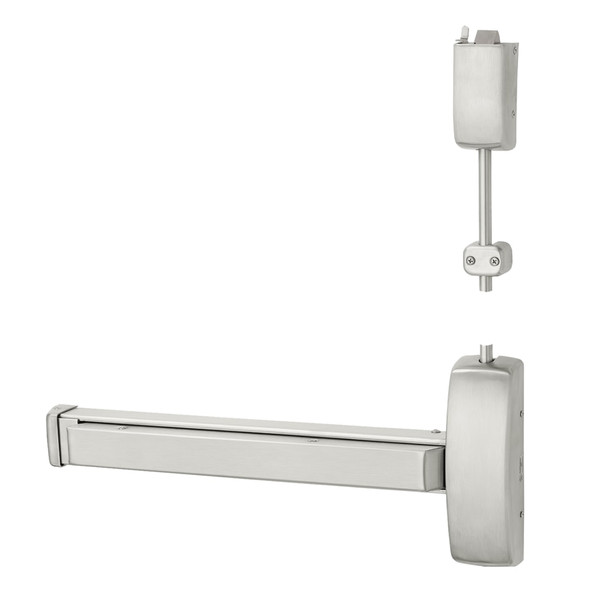

The Sargent 80 Series exit device is a Grade 1 certified crash bar designed for wood and metal doors requiring heavy-duty security and reliability. Ideal for commercial facilities, hospitals, and high-traffic buildings, this right-hand reverse (RHR) model provides exceptional durability with modular construction and minimal maintenance needs throughout the building's lifecycle.
This model fits 1-3/4" thick doors with E rail configuration (24-32" door width; 32" requires no cutting). The 80 Series exceeds ANSI/BHMA Grade 1 cycle and strength standards and supports optional features like delayed egress, alarmed exit, and electric latch retraction. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for configuration assistance and expert recommendations.
Specifications
- Brand: Sargent
- Model: 12-NB8746E ETB RHR 32D
- Series: 80 Series
- Configuration: Rim, right-hand reverse (RHR)
- Door Thickness: 1-3/4" (44mm)
- Rail Type: E Rail
- Door Width Range: 24" to 32" (61-81cm)
- Minimum Stile Width: 4-1/2" with trim; 3-1/2" without trim
- Certification: Exceeds ANSI/BHMA Grade 1
- Door Types: Wood or metal
