Description

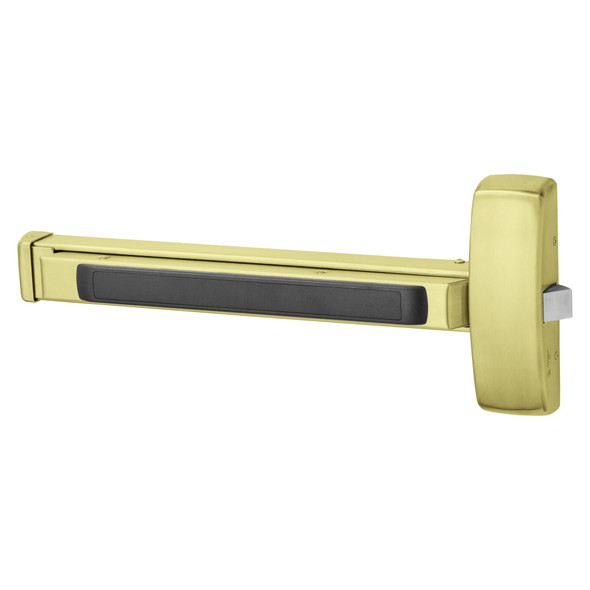

The Sargent 80 Series Rim Exit Device is a heavy-duty single-point latching solution for wood or metal doors 1-3/4 inches thick. Built for facilities demanding maximum security and durability, this Grade 1 exit device provides quiet operation and exceeds ANSI/BHMA standards for cycle strength, ideal for commercial buildings, hospitals, schools, and secured access points.
This rim configuration fits E-rail door widths 24 to 32 inches without cutting. The 80 Series features modular construction with minimal moving parts for maintenance-free operation, plus options for delayed egress, alarmed exit, and electric latch retraction. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert assistance selecting the right rail size and keying configuration for your application.
Specifications
- Configuration: Rim exit device
- Door thickness: 1-3/4 inches (44mm)
- Rail type: E Rail
- Door width range: 24 to 32 inches (61 to 81cm)
- No cutting required for 32-inch doors
- Single point latching
- Single and double door applications with mullions
- ANSI A156.3 Grade 1
- UL Fire and Panic listed
- Material compatibility: Wood or metal doors
