Description

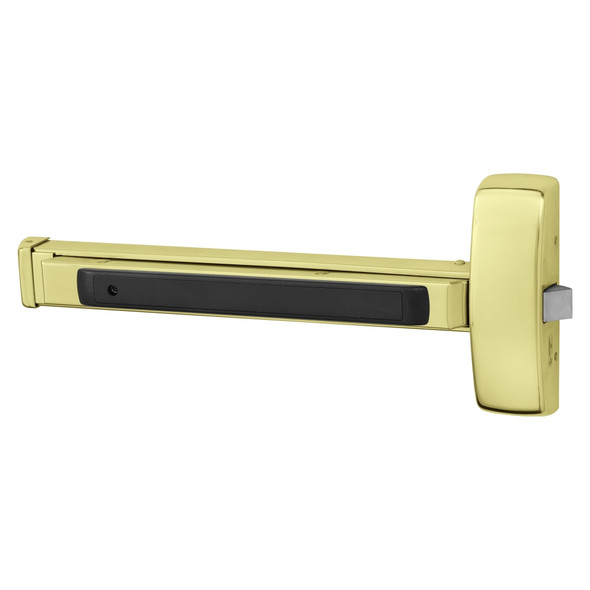

The Sargent 80 Series rim exit device is a Grade 1 panic hardware solution for wood and metal doors requiring durable, code-compliant egress hardware. Designed for single and double door applications, it delivers quiet operation and solid security while exceeding ANSI/BHMA Grade 1 cycle and strength requirements with minimal maintenance.
This rim-mounted device fits wood or metal doors 1-3/4 inches thick and accommodates door widths from 24 to 48 inches via multiple rail options (E, F, J, G). UL Fire and Panic listed, it supports optional delayed egress, alarmed exit, and electric latch retraction features. Contact E.D. Locks for expert installation guidance and authorized dealer support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Model: 125556-8815E 3
- Type: Rim Exit Device
- Configuration: Single point latching
- Door Thickness: 1-3/4 inches (44mm); over 1-3/4 inch specify thickness with 31- prefix
- Door Width Range: E Rail 24-32 inches, F Rail 33-36 inches, J Rail 37-42 inches, G Rail 43-48 inches
- Applications: Single door and double door with mullions
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Quiet operation, maintenance-free modular construction, optional delayed egress, alarmed exit, electric latch retraction
