Description

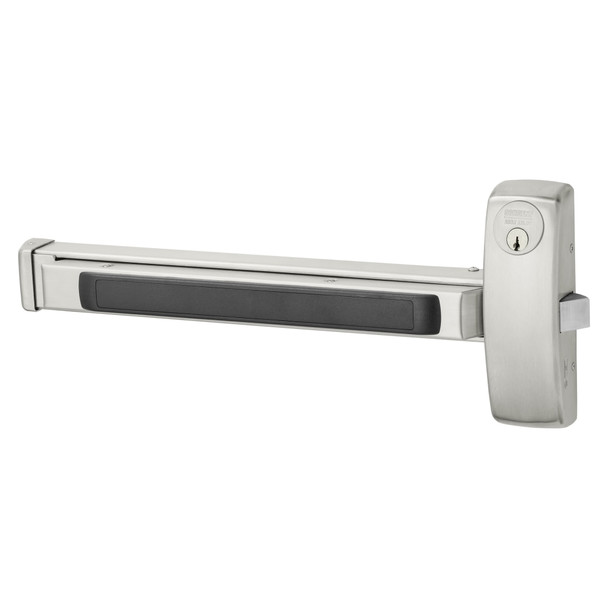

The Sargent 80 Series rim exit device is built for commercial facilities demanding Grade 1 durability and security. This left-hand reverse (LHR) model suits wood or metal doors 1 3/4" thick, with single-point latching for single and double door applications. ANSI A156.3 Grade 1 certified and UL Fire and Panic listed, it delivers maintenance-free operation with minimal moving parts across the life of your building.
The E Rail configuration fits doors 24" to 32" wide with no cutting required for 32" doors. Modular design enables options like delayed egress, alarmed exit, and electric latch retraction for specialized needs. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility, installation keying, and to ensure you select the correct rail size for your application.
Specifications
- Brand: Sargent
- Model: 125556-8816E
- Handing: LHR (Left Hand Reverse)
- Configuration: Rim Exit Device
- Door Type: Wood or Metal
- Door Thickness: 1 3/4" (44mm)
- Door Width (E Rail): 24" to 32" (61cm to 81cm)
- No Cutting Required: 32" door
- Latch: Single Point
- Applications: Single Door, Double Door with Mullions
- Standard: ANSI A156.3 Grade 1
- Listing: UL Fire and Panic
