Description

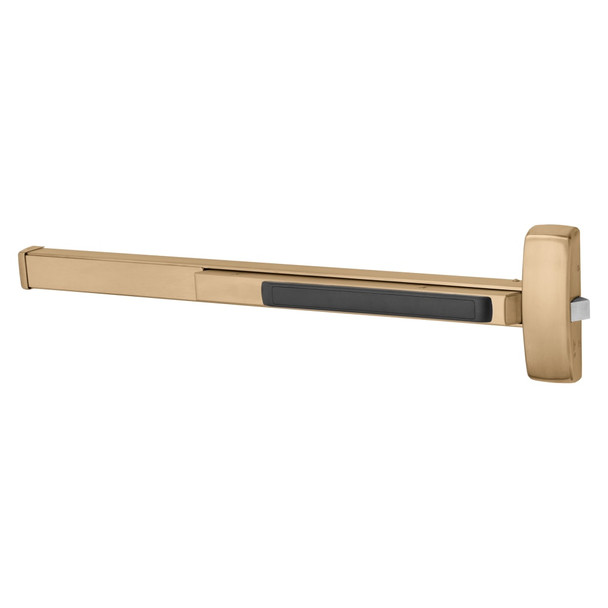

The Sargent 80 Series Rim Exit Device is a heavy-duty egress solution for wood and metal doors in commercial and institutional facilities. Engineered to exceed ANSI/BHMA Grade 1 strength and cycle requirements, it delivers maintenance-free operation with modular construction and minimal moving parts, ideal for buildings requiring long-term security and reliability.
This left-hand reverse (LHR) model fits standard 1-3/4" doors and works with E, F, J, or G rails to accommodate door widths from 24" to 48". It is UL Fire and Panic listed and ANSI A156.3 Grade 1 certified. For custom applications, delayed egress, alarmed, or electric latch retraction options are available. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert specification and installation guidance.
Specifications
- Model: 125556-8828G LHR 10
- Brand: Sargent
- Type: Single point rim latching exit device
- Handedness: Left-hand reverse (LHR)
- Door Thickness: 1-3/4" (44mm) standard; custom thicknesses available
- Door Width Range: E Rail 24-32", F Rail 33-36", J Rail 37-42", G Rail 43-48"
- Door Types: Wood or metal
- Applications: Single door and double door with mullions
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Quiet operation, solid security, modular construction
- Available Options: Delayed egress, alarmed exit, electric latch retraction
