Description

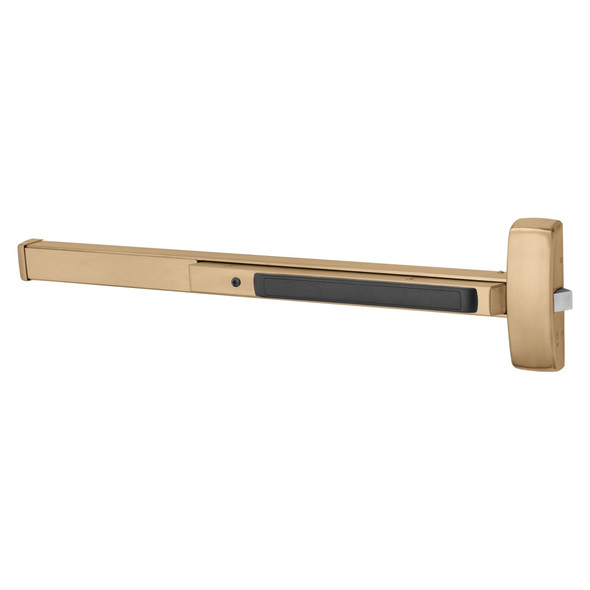

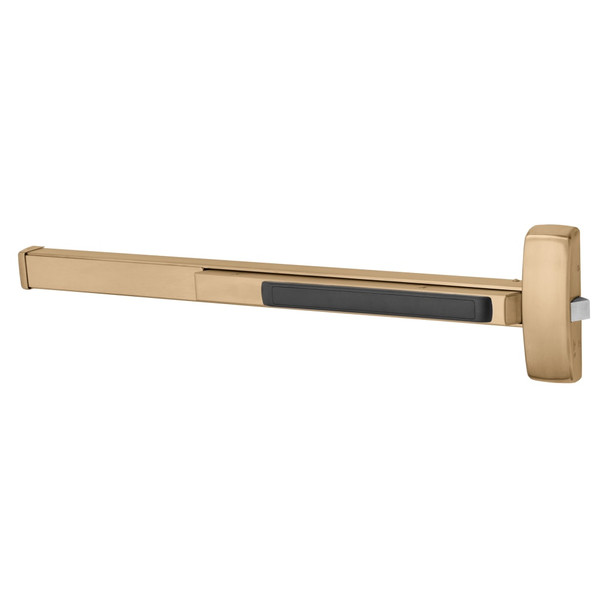

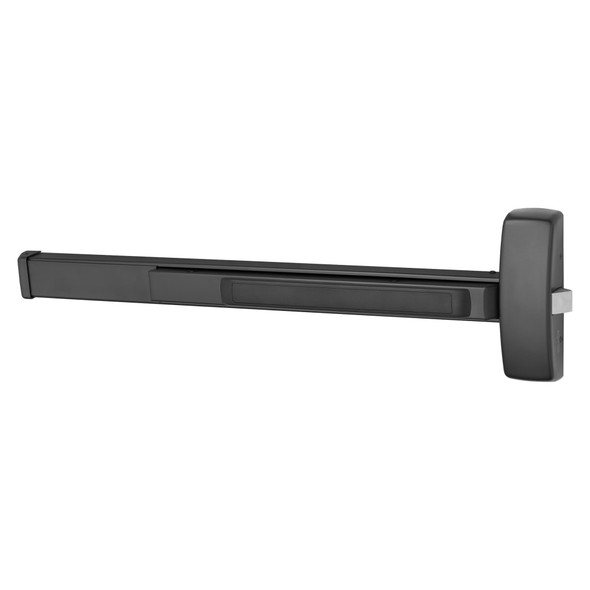

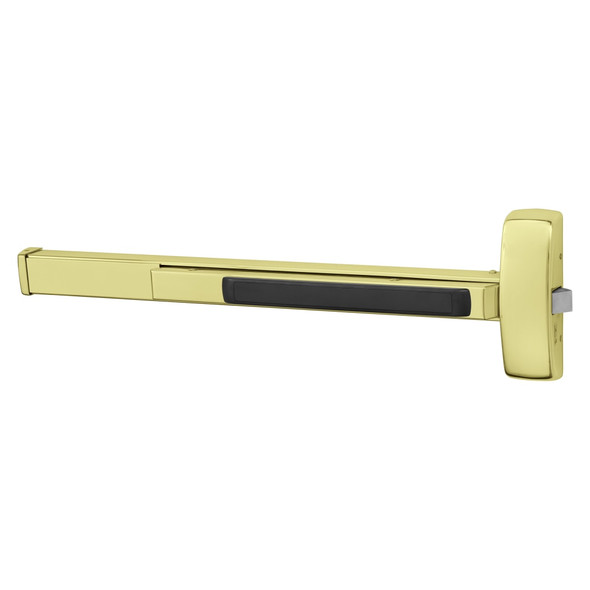

The Sargent 80 Series Rim Exit Device is a heavy-duty panic bar designed for wood and metal doors in commercial buildings. This Grade 1 certified device delivers single-point latching security with quiet operation, making it ideal for facilities demanding durability, low maintenance, and compliance with fire and panic code requirements.
This rim-mounted unit fits doors 24 to 48 inches wide (specific rail configuration determines width range) and 1-3/4 inches thick. Compatible with single and double door applications, it features modular construction with few moving parts. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on rail selection, installation, and optional features like delayed egress or electric latch retraction.
Specifications
- Brand: Sargent
- Model: 125556-8843G 10
- Type: Rim Exit Device
- Series: 80 Series
- Door Compatibility: Wood or metal, 1-3/4 inch (44mm) thick; thicker doors available with 31-prefix ordering
- Width Range: E Rail 24-32 inches, F Rail 33-36 inches, J Rail 37-42 inches, G Rail 43-48 inches
- Configuration: Single-point latching
- Applications: Single and double doors with mullions
- Certification: ANSI A156.3 Grade 1, UL Fire and Panic Listed
- Features: Quiet operation, low maintenance, modular construction
