Description

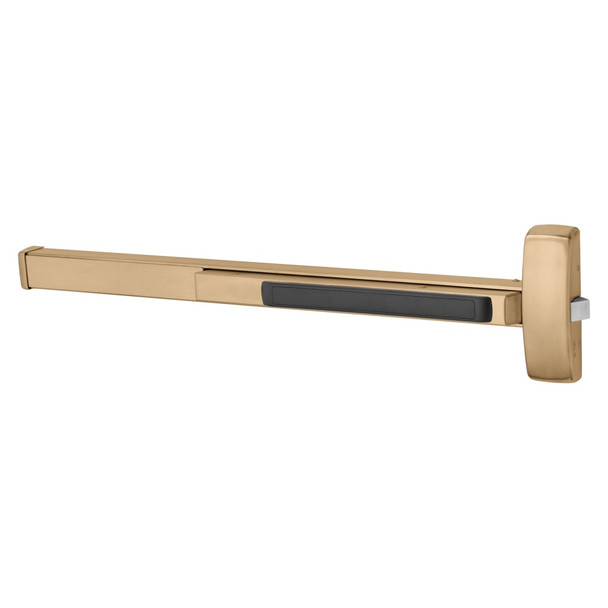

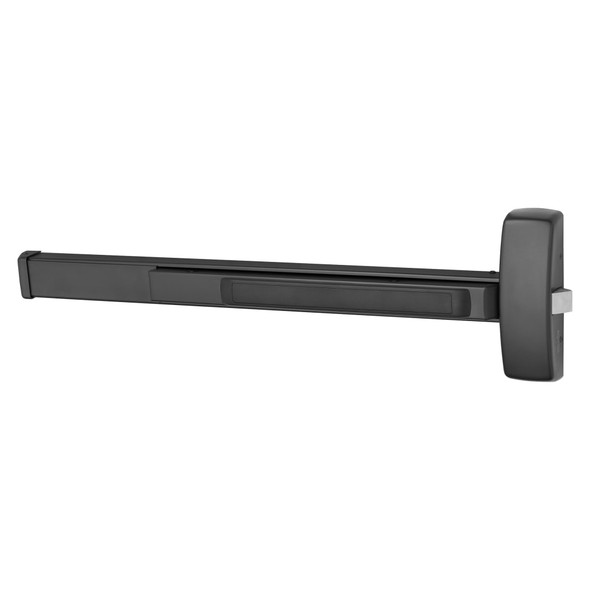

The Sargent 80 Series rim exit device delivers Grade 1 security and durability for commercial facilities. Engineered for wood or metal doors 1 3/4 inches thick, this single-point latching device suits single and double door applications with mullions. ANSI A156.3 certified and UL fire and panic listed, it provides quiet, maintenance-free operation that exceeds building code requirements.
Available in multiple rail configurations (E, F, J, G) to fit door widths from 24 to 48 inches without cutting for standard sizes. The modular 80 Series design includes options for delayed egress, alarmed exit, and electric latch retraction. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for compatibility verification and installation guidance.
Specifications
- Brand: Sargent
- Model: 80 Series Rim Exit Device (125556-8846G 10)
- Door Thickness: 1 3/4 inches (44mm); over 1 3/4 inches order as 31-prefix
- Rail Options: E (24-32 inches), F (33-36 inches), J (37-42 inches), G (43-48 inches)
- Door Types: Wood or metal
- Applications: Single and double doors with mullions
- Certification: ANSI A156.3 Grade 1, UL Fire and Panic Listed
- Features: Single point latching, quiet operation, modular construction
