Description

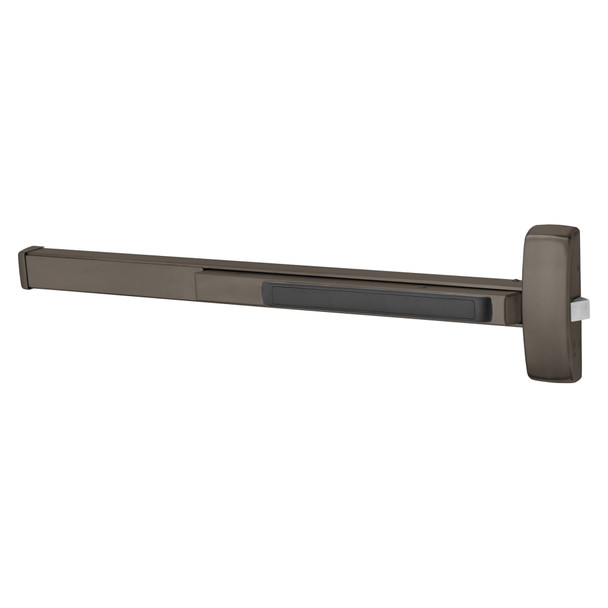

The Sargent 80 Series rim exit device delivers Grade 1 security and durability for wood or metal doors in high-traffic facilities. Engineered for single and double door applications, this modular device features single-point latching, quiet operation, and maintenance-free performance that exceeds ANSI/BHMA Grade 1 cycle and strength requirements for the life of your building.
This rim configuration fits doors 24" to 48" wide (E, F, J, or G rail options) without cutting for standard sizes. UL Fire and Panic listed for code compliance. Delayed egress, alarmed exit, and electric latch retraction options are available. As an authorized Sargent dealer, E.D. Locks provides expert guidance on configuration and installation. Contact sales@edlocks.com or 1-877-207-6067 for specification assistance.
Specifications
- Brand: Sargent
- Model: 1256-8804G 10B
- Type: Rim Exit Device
- Door Thickness: 1-3/4" (44mm) standard; over 1-3/4" available with 31- prefix
- Door Width Range: E Rail 24"-32" (61-81cm), F Rail 33"-36" (84-91cm), J Rail 37"-42" (94-107cm), G Rail 43"-48" (110-122cm)
- Latching: Single-point
- Configuration: Single and double door with mullions
- Certification: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Operation: Quiet, maintenance-free
- Options: Delayed egress, alarmed exit, electric latch retraction
