Description

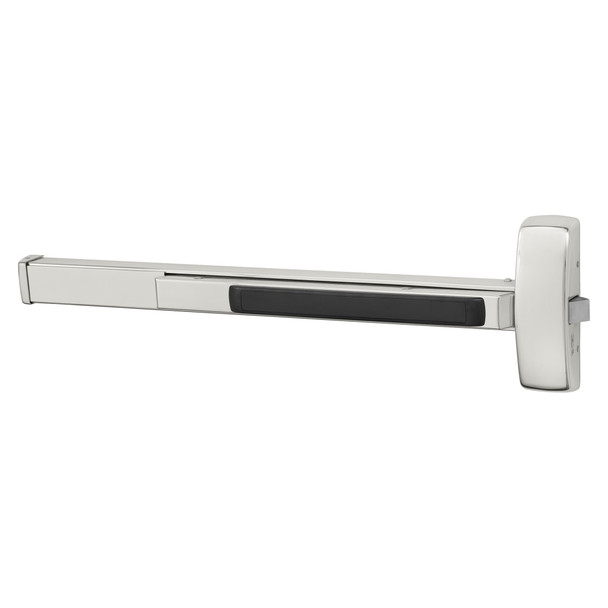

The Sargent 80 Series rim exit device is a heavy-duty panic bar built for wood and metal doors requiring Grade 1 security and reliability. Ideal for commercial facilities, schools, and healthcare settings, this single-point latching device provides UL Fire and Panic certification while delivering quiet operation and maintenance-free performance that lasts the life of the building.
Fits 1-3/4 inch thick doors up to 32 inches wide with the E Rail (no cutting required). The 80 Series exceeds ANSI/BHMA Grade 1 strength and cycle requirements and supports delayed egress, alarmed, and electric latch retraction options for specialized applications. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for door thickness verification, rail selection, and custom configuration guidance.
Specifications
- Model: 1256-8810G 32
- Brand: Sargent
- Series: 80 Series
- Type: Rim Exit Device
- Configuration: Single point latching
- Door Compatibility: Wood or metal, 1-3/4 inch thick
- Door Width: 24 to 32 inches (E Rail, no cutting for 32 inch)
- Rail Options: E Rail (24-32 inch), F Rail (33-36 inch), J Rail (37-42 inch), G Rail (43-48 inch)
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Applications: Single door and double door with mullions
- Options: Delayed egress, alarmed exit, electric latch retraction
