Description

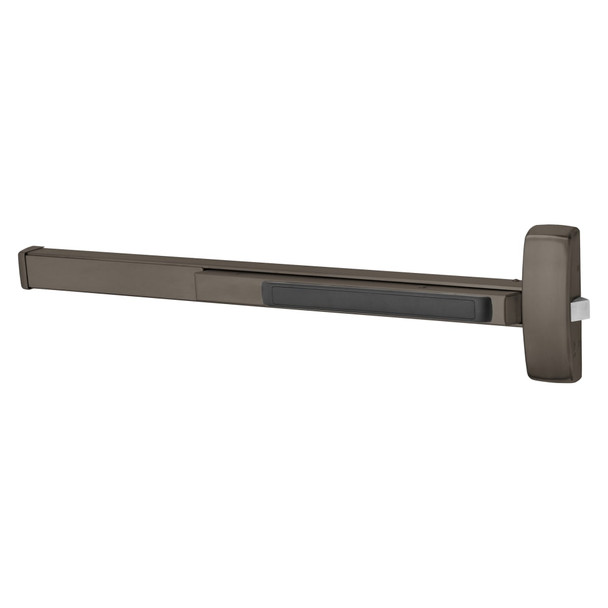

The Sargent 80 Series rim exit device is a Grade 1 panic hardware solution designed for commercial buildings requiring durable, long-lasting security. Built for wood or metal doors 1 3/4" thick, this single-point latching device handles single and double door applications with quiet operation and solid security compliance.
Installation works on E, F, J, or G rail configurations (24" to 48" door widths) with no cutting required on standard sizes. The modular design requires minimal maintenance. As an authorized Sargent dealer, E.D. Locks provides expert guidance on rail selection and custom options like delayed egress or electric latch retraction. Contact sales@edlocks.com or 1-877-207-6067 for sizing help and competitive pricing.
Specifications
- Brand: Sargent
- Model: 1256-8815F 10B
- Type: Rim Exit Device
- Door Thickness: 1 3/4" (44mm) standard; specify thickness for doors over 1 3/4"
- Rail Options: E (24"-32"), F (33"-36"), J (37"-42"), G (43"-48")
- Applications: Single and double doors with mullions
- Grade: ANSI A156.3 - Grade 1
- Certifications: UL Fire and Panic listed
- Features: Single point latching, quiet operation, modular construction
