Description

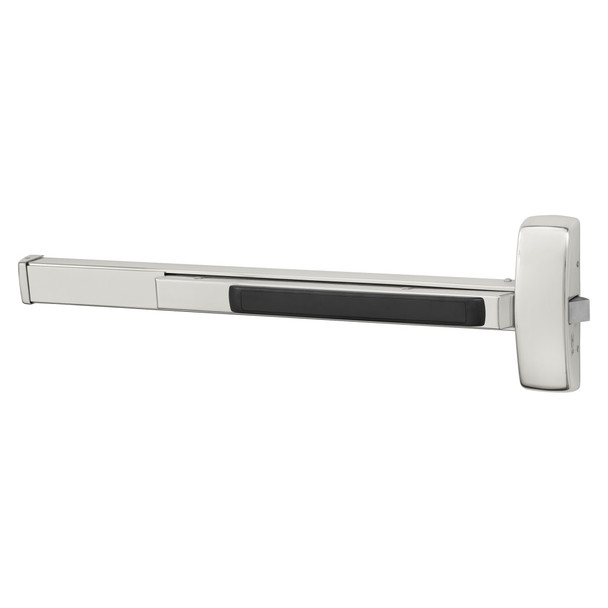

The Sargent 80 Series rim exit device delivers commercial-grade security for wood and metal doors in facilities demanding durability and reliability. Ideal for emergency egress applications, this ANSI/BHMA Grade 1 device features single-point latching, minimal moving parts, and maintenance-free operation that protects building occupants while exceeding industry strength and cycle requirements.
Designed for 1 3/4 inch thick doors, the F Rail model fits doors 33 to 36 inches wide without cutting. UL Fire and Panic listed for code compliance, it supports single and double door configurations with optional delayed egress, alarmed, and electric latch retraction features. Contact an authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert specification and installation guidance tailored to your facility.
Specifications
- Series: Sargent 80
- Configuration: Rim
- Door Thickness: 1 3/4 inch (44mm)
- Door Width Range (F Rail): 33 to 36 inches (84cm to 91cm)
- Latching: Single point
- ANSI/BHMA Rating: Grade 1
- Listings: UL Fire and Panic
- Door Types: Wood or metal
- Applications: Single door, double door with mullions
