Description

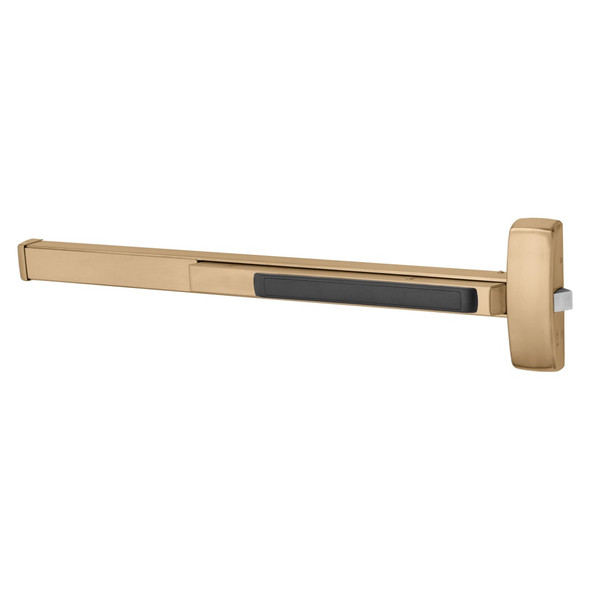

The Sargent 1256-8840G 32D is a heavy-duty rim exit device designed for wood or metal doors requiring reliable panic hardware and emergency egress control. Ideal for commercial facilities, schools, and healthcare settings, this Grade 1 device provides single-point latching, quiet operation, and exceptional durability to meet life-safety codes and building security standards.
This rim configuration fits doors 24 to 32 inches wide with no cutting required for standard 32-inch doors. Compatible with 1-3/4-inch thick doors (thicker applications available). UL Fire and Panic listed, ANSI A156.3 Grade 1 certified. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert sizing, keying, and installation guidance from an authorized Sargent dealer.
Specifications
- Brand: Sargent
- Series: 80
- Model: 1256-8840G 32D
- Type: Rim Exit Device
- Door Width Range: 24 to 32 inches (E Rail)
- Door Thickness: 1-3/4 inches (44 mm)
- Applications: Single and double doors with mullions
- Latching: Single point
- Certification: ANSI A156.3 Grade 1, UL Fire and Panic Listed
- Features: Modular construction, maintenance-free, quiet operation
