Description

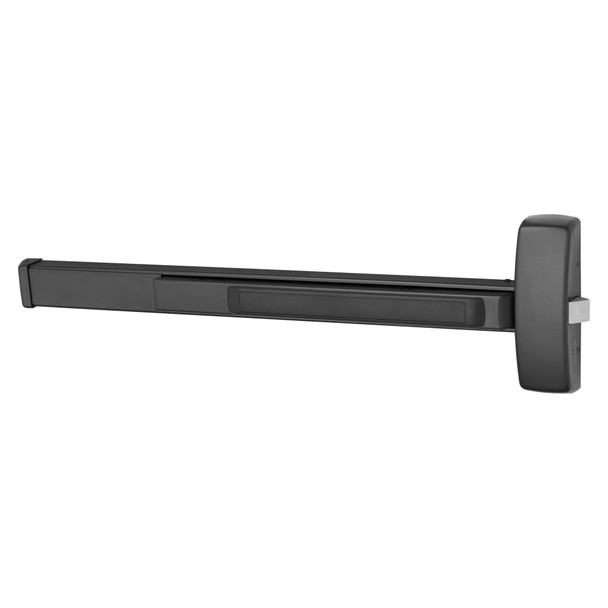

The Sargent 80 Series rim exit device delivers Grade 1 security for wood and metal doors in high-traffic facilities. Built for durability and compliance with ANSI/BHMA standards, this single-point latching device handles both single and double door applications with quiet, reliable operation. Ideal for buildings requiring fire-rated and panic-listed exit hardware that performs for decades with minimal maintenance.
The 1256-8843F BSP fits wood or metal doors 1-3/4" thick and is available in four rail sizes to accommodate door widths from 24" to 48". Verify your door width and thickness before ordering; doors over 1-3/4" require a 31-prefix specification. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for rail selection guidance, keying options, and installation support.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 1256-8843F BSP
- Type: Rim Exit Device, Single Point Latching
- Door Thickness: 1-3/4" (44mm) standard; specify for thicker doors
- E Rail: 24" to 32" doors
- F Rail: 33" to 36" doors
- J Rail: 37" to 42" doors
- G Rail: 43" to 48" doors
- Door Material: Wood or metal
- Applications: Single and double doors with mullions
- Standard: ANSI A156.3 Grade 1
- Certification: UL Fire and Panic listed
- Operation: Quiet, single-point latching
