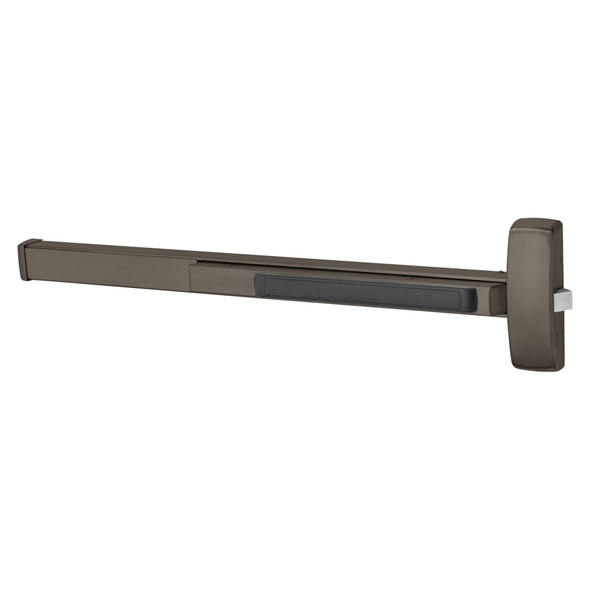

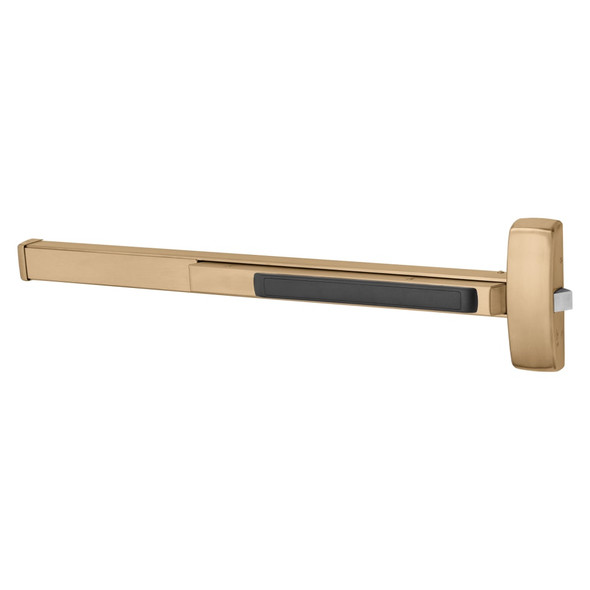

Sargent 80 Series 1256-8873J 32 Rim Exit Device

The Sargent 80 Series rim exit device is a heavy-duty, Grade 1 panic hardware solution for wood and metal doors up to 1-3/4" thick. Designed for facilities requiring maximum durability and security, this single-point latching device exceeds ANSI/BHMA standards and operates quietly while maintaining uncompromised egress control for life safety compliance.

This J Rail configuration fits doors 37" to 42" wide (no cutting required for 42" doors). Compatible with single and double door applications, the 80 Series features modular construction, minimal maintenance needs, and optional delayed egress or alarm functions. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, installation and customization options.

Specifications

• Door Thickness: Wood or metal 1-3/4" (44mm); over 1-3/4" requires 31- prefix
• J Rail Width Range: 37" to 42" (94cm to 107cm)
• Configuration: Rim exit device, single-point latching
• Grade: ANSI A156.3 Grade 1
• Certifications: UL Fire and Panic listed
• Features: Quiet operation, modular construction, maintenance-free
• Applications: Single and double doors with mullions
