Description

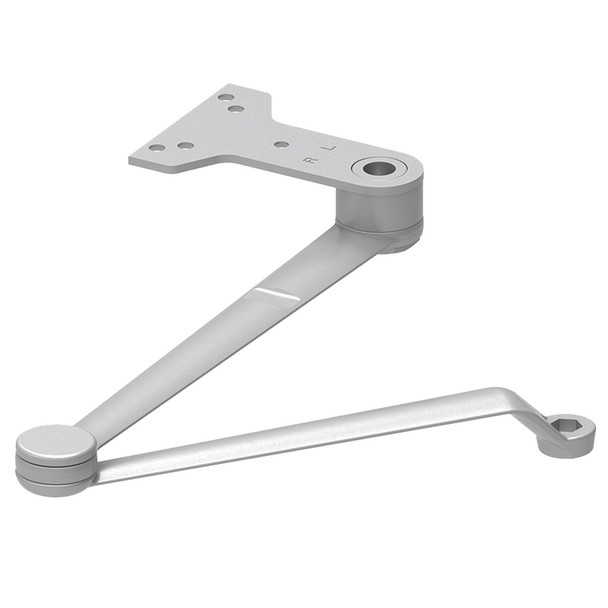

The LCN 1260-3049EDA/G is a left-hand (LH) replacement arm for the LCN 1260 Series door closer, a light- to medium-duty Grade 1 commercial closer. Ideal for facility managers and contractors who need to repair or replace worn closer arms, this component restores smooth, controlled door operation on interior and exterior doors.
This arm is compatible with the standard LCN 1260 closer body and mounts to the common 3/4" x 9-1/16" commercial footprint. Installation is straightforward with self-reaming and tapping screws included. For expert guidance on sizing, finish options (standard or custom powder coat), or corrosive-environment specifications, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: LCN
- Model: 1260-3049EDA/G LH
- Handedness: Left Hand (LH)
- Material: Aluminum (AL)
- Piston Diameter: 1-3/8 inch
- Pinion Journal Diameter: 5/8 inch (single, heat treated)
- Mounting Pattern: 3/4" x 9-1/16"
- Spring Size Range: Adjustable 1-5
- Interior Door Capacity: Up to 4'6"
- Exterior Door Capacity: Up to 3'6"
- ADA Compliant: Yes
- Includes: Self-reaming and tapping screws, shaft cover
- Optional: Quick Fix bracket kit, custom powder coat finish, SRI primer for corrosive conditions, Slim Line cover
