Description
The LCN 1260 Series is a light to medium duty Grade 1 cast iron door closer engineered for commercial applications. Designed for interior doors up to 4'6" and exterior doors up to 3'6", it solves the challenge of reliable, adjustable door control with a non-handed design that works on either right or left swinging doors.
The 1260 mounts to the standard commercial footprint (3/4" x 9-1/16") and includes a peel-n-stick template for straightforward installation. As an authorized LCN dealer, E.D. Locks provides expert support, genuine parts, and access to optional accessories like the Quick Fix bracket kit and custom finishes. Contact sales@edlocks.com or call 1-877-207-6067 for specification guidance and fast shipping.
Specifications
- Brand: LCN
- Model: 1260 Series
- Grade: Grade 1
- Duty: Light to medium duty
- Construction: Cast iron
- Spring Sizes: Adjustable 1-5
- Piston Diameter: 1-3/8 inch
- Pinion Journal: 5/8 inch diameter, single heat treated
- Interior Door Capacity: Up to 4'6"
- Exterior Door Capacity: Up to 3'6"
- Mounting Pattern: 3/4" x 9-1/16"
- Handing: Non-handed
- ADA Compliant: Yes
- Included: Regular arm, shaft cover, self-reaming and tapping screws
- Optional Finishes: Standard or custom powder coat, optional SRI primer for corrosive environments

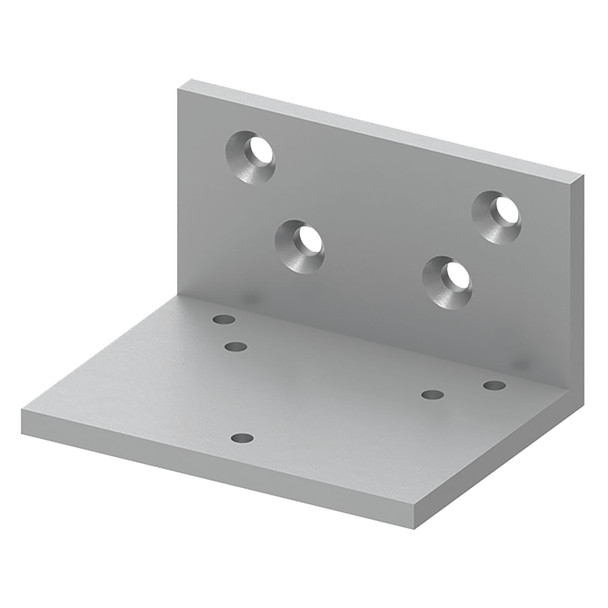

- Optional Accessories: Quick Fix bracket kit, Slim Line cover
