Description

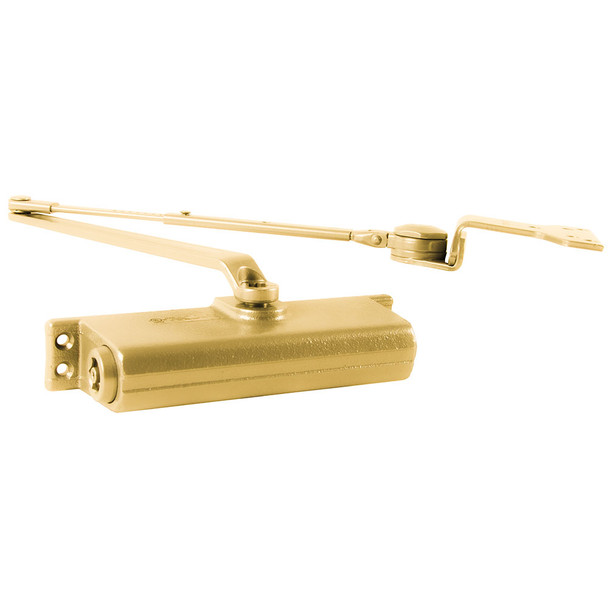

The LCN 1261-H is a light to medium duty Grade 1 surface-mounted door closer designed for commercial buildings. Built with cast iron construction, a full complement bearing, and adjustable spring sizes 1-5, it solves the need for reliable, code-compliant door closing on interior doors up to 4'6" and exterior doors up to 3'6", with non-handed operation for left or right swing installation.
The 1261-H fits the standard commercial mounting footprint (3/4" x 9-1/16") and ships with a regular arm, shaft cover, and self-reaming screws for straightforward installation. Meets ADA requirements. E.D. Locks is an authorized LCN dealer; contact our team at sales@edlocks.com or 1-877-207-6067 for expert guidance on finish options, optional Quick Fix brackets, or corrosive-environment primers to ensure the right closer for your application.
Specifications
- Brand: LCN
- Model: 1261-H
- Duty Rating: Light to Medium, Grade 1
- Construction: Cast Iron
- Piston Diameter: 1-3/8 in.
- Pinion Journal: 5/8 in. diameter, single heat treated
- Spring Sizes: Adjustable 1-5
- Interior Door Capacity: Up to 4'6"
- Exterior Door Capacity: Up to 3'6"
- Mounting Footprint: 3/4" x 9-1/16"
- Mounting Position: Hinge side, top jamb
- Arm Type: Parallel, regular or extra duty
- Handed: Non-handed (left or right swing)
- ADA Compliant: Yes
- Installation: Peel-n-stick template included; self-reaming and tapping screws
- Finish: Standard brass; optional powder coat or SRI primer available
