Description

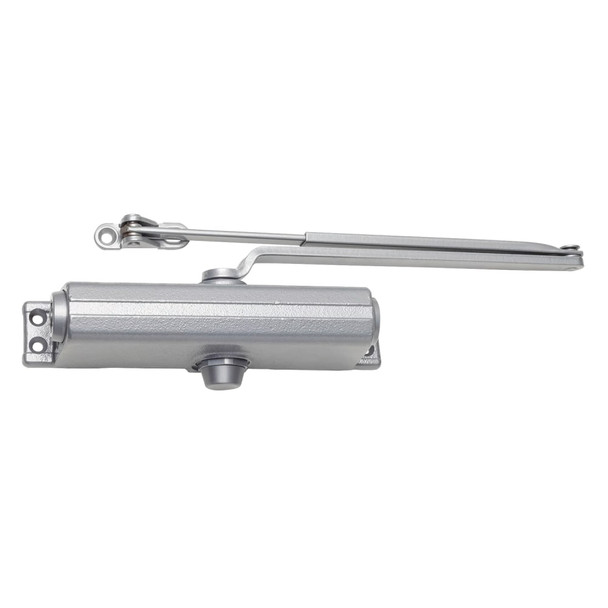

The LCN 1261-REG AL SLIM is a light to medium duty Grade 1 surface-mounted door closer engineered for commercial applications. Ideal for facility managers and contractors, it solves the challenge of controlling door swing on interior and exterior doors while meeting ADA compliance requirements. Its non-handed design and adjustable spring range (sizes 1-5) adapt to diverse door weights and traffic patterns.
The 1261-REG mounts to the standard 3/4 inch by 9-1/16 inch commercial footprint using the included peel-n-stick template and self-reaming screws for fast installation. Compatible with interior doors up to 4 feet 6 inches and exterior doors to 3 feet 6 inches, it pairs with regular or extra duty arms. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on finish options, Quick Fix bracket kits, or SRI primer for corrosive environments.
Specifications
- Brand: LCN
- Series: 1260
- Model: 1261-REG AL SLIM
- Duty Rating: Grade 1 Light to Medium Duty
- Construction: Cast Iron
- Spring Adjustment Range: Sizes 1-5
- Piston Diameter: 1-3/8 inch
- Pinion Journal: 5/8 inch diameter, single heat treated
- Bearing Type: Full complement
- Mounting Pattern: 3/4 inch x 9-1/16 inch
- Interior Door Capacity: Up to 4 feet 6 inches
- Exterior Door Capacity: Up to 3 feet 6 inches
- Handed: Non-handed (universal)
- Includes: Regular arm, shaft cover, self-reaming and tapping screws
- Installation: Hinge side, top jamb, or parallel arm mounting
- Optional Finishes: Standard, custom powder coat, or SRI primer
- Optional Accessories: Quick Fix bracket kit, Slim Line cover
- Compliance: ADA requirements met
