Description

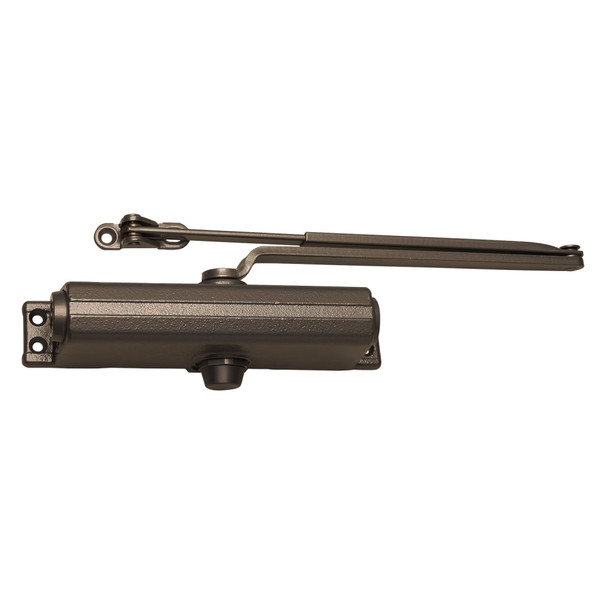

The LCN 1261 695 Slim is a Grade 1 light to medium duty door closer built for commercial applications where space and reliability matter. Its compact design fits standard commercial door frames, making it ideal for offices, retail, and institutional buildings that need dependable door control without bulk.
This closer is adjustable across spring sizes 1 to 5 and features a 1-3/8 inch diameter piston and 5/8 inch diameter heat-treated pinion journal for smooth, consistent performance. The non-handed design simplifies installation with a peel-and-stick template and standard 3/4 inch by 9-1/16 inch mounting hole pattern. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on sizing, arm selection, and installation support as an authorized LCN dealer.
Specifications
- Model: LCN 1261 695 Slim
- Duty Rating: Grade 1, Light to Medium Duty
- Material: Cast Iron
- Piston Diameter: 1-3/8 inches
- Pinion Journal Diameter: 5/8 inches (heat treated)
- Spring Adjustment Range: Sizes 1-5
- Design: Non-handed
- Mounting Hole Pattern: 3/4 inch x 9-1/16 inches
- Installation Aid: Peel-and-stick template included
