Description

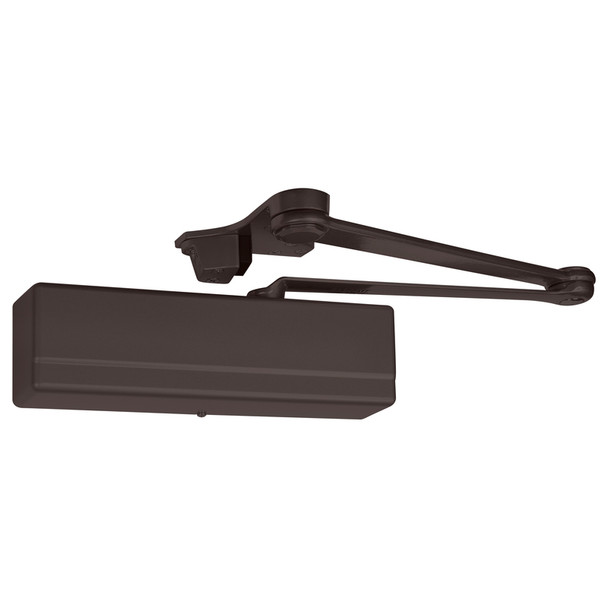

The Sargent 1431-CPS is a heavy-duty aluminum surface door closer designed for interior and exterior applications on standard and fire-rated doors. Built for high-traffic environments, it provides reliable door control and closing speed adjustment across a full size range (1-6), solving noise and safety concerns in commercial and institutional settings.
This Grade 1 ANSI/BHMA certified closer is UL 10C listed and suitable for positive pressure fire test applications. Compatible with standard, top jamb, parallel, and track mounting, it includes self-sticking templates for easy installation. As an authorized Sargent dealer, E.D. Locks provides expert configuration guidance and technical support at sales@edlocks.com or 1-877-207-6067 to ensure proper sizing and setup for your specific door assembly.
Specifications
- Cycle Rating: Exceeds 15 million cycles
- Certifications: ANSI/BHMA A156.4 Grade 1, UL 10C, UL/cUL fire-rated door listing
- Piston Diameter: 1-1/2 inch
- Spring Power Range: Sizes 1-6 adjustable
- Factory Default: Size 3
- Handed: Non-handed
- Covers: High-impact non-corrosive plastic standard; metal and lead-lined optional
- Temperature Rating: All-weather fluid for extreme temperatures
- Warranty: 25-year limited
- ADA Compliant: Yes (except push-side track)
