Description
The LCN 1460 Series is a Grade 1 commercial door closer designed for versatility in institutional and commercial applications. This cast iron closer features a 1-1/4 inch diameter piston, adjustable spring strength (sizes 1-6), and all-weather fluid for reliable performance on interior doors up to 5 feet and exterior doors up to 4 feet.
The 1460 Series mounts on the hinge side or top jamb and works on either right or left swinging doors with optional parallel arm installation. As an authorized LCN dealer, E.D. Locks offers expert guidance on cover options, finishes, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for compatibility verification and expert support.
Specifications
- Brand: LCN
- Model: 1460 Series
- Grade: 1
- Body: Cast iron with full complement bearing
- Piston diameter: 1-1/4 inch
- Pinion journal diameter: 3/4 inch, heat treated
- Spring size range: 1 to 6 (adjustable)
- Interior door capacity: Up to 5 feet
- Exterior door capacity: Up to 4 feet
- Cycle rating: 2,000,000 cycles

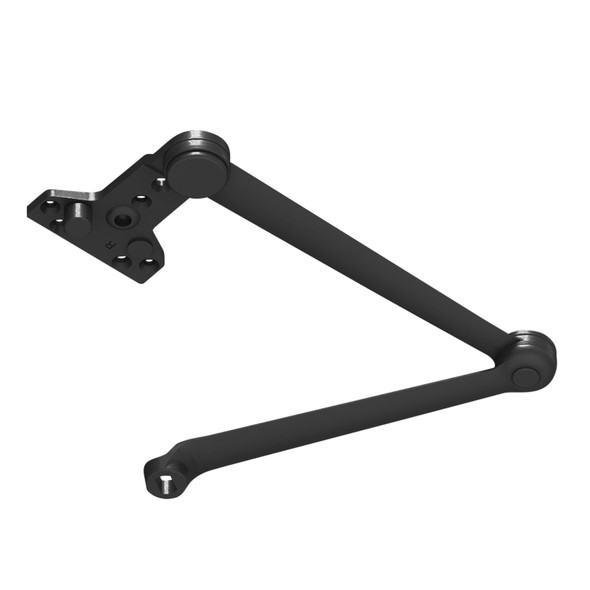

- Mounting options: Hinge side, top jamb, parallel arm
- Finish: Black (standard), optional powder coat or plated
- Features: Cush-N-Stop function, concealed adjustment valves, stick-on template
- Compliance: ADA requirements
