Description
The LCN 1460-72DS1 is a Grade 1 commercial door closer designed for versatile use in institutional and commercial buildings. This heavy-duty closer features a cast iron body, full-complement bearing, and adjustable spring strength (sizes 1-6) to match any door size. It solves the challenge of finding a reliable, durable closer that works on both interior and exterior doors.

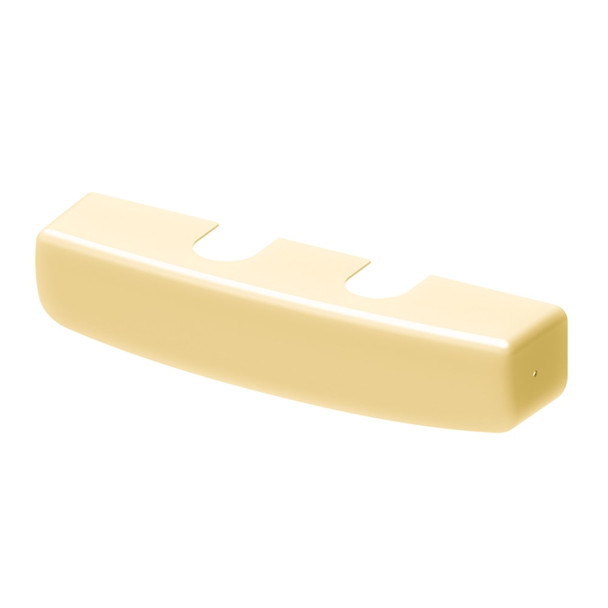

Compatible with hinge-side, top-jamb, and parallel-arm mounting on right or left-swinging doors up to 5 ft (interior) or 4 ft (exterior). The 72DS1 cover is one of multiple options available. LCN closers meet ADA requirements and come factory-set to spring strength 3. As an authorized LCN dealer, E.D. Locks offers expert installation guidance and finish options including standard powder coat, optional plating, and SRI primer for corrosive environments. Contact our team at sales@edlocks.com or 1-877-207-6067 for sizing and specification support.
Specifications
- Grade 1 closer
- Cast iron body with full-complement bearing
- 1-1/4 in. diameter piston
- 3/4 in. diameter single heat-treated pinion journal
- Adjustable spring size 1-6
- All-weather fluid
- Interior door capacity up to 5 ft
- Exterior door capacity up to 4 ft
- Hinge-side, top-jamb, and parallel-arm mounting options
- Right or left-swinging door compatible
- ADA compliant
- Tested to 2,000,000 cycles
- Cush-N-Stop built-in stop function
- Finish options: standard powder coat, optional plated, optional SRI primer
