Description

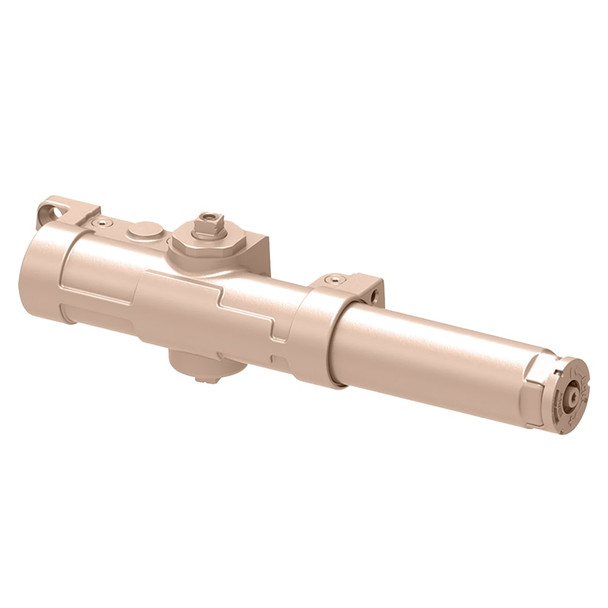

The LCN 1461-3071DEL is a Grade 1 commercial door closer built for versatility in institutional and commercial settings. Its cast iron body, 1-1/4 inch piston, and adjustable spring (sizes 1-6) handle interior doors to 5 feet and exterior doors to 4 feet. This universal, non-handed closer mounts on the hinge side, top jamb, or parallel arm for right or left swinging doors and meets ADA requirements.
The 1461 series features independent adjustment valves for backcheck, closing, and latching speeds, plus a built-in Cush-N-Stop function to prevent damage. It is tested to 2,000,000 cycles and ships with a slim-line plastic cover and self-reaming screws. For proper sizing, compatibility confirmation, and finish or installation guidance, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: LCN
- Model: 1461-3071DEL
- Finish: Light Bronze (LTBRZ)
- Grade: 1
- Body: Cast iron with full complement bearing
- Piston Diameter: 1-1/4 inch
- Pinion Journal: 3/4 inch diameter, single heat treated
- Spring Range: Adjustable sizes 1-6
- Interior Door Capacity: Up to 5 feet
- Exterior Door Capacity: Up to 4 feet
- Cycle Rating: 2,000,000 cycles
- Installation Options: Regular (pull side), top jamb (push side), parallel arm (push side)
- Mounting: Hinge side, top jamb, or parallel arm; right or left swinging
- Features: Cush-N-Stop function, concealed adjustment valves, stick-on template, non-handed, fully reversible
- ADA Compliant: Yes
- Fluid Type: All weather
