Description

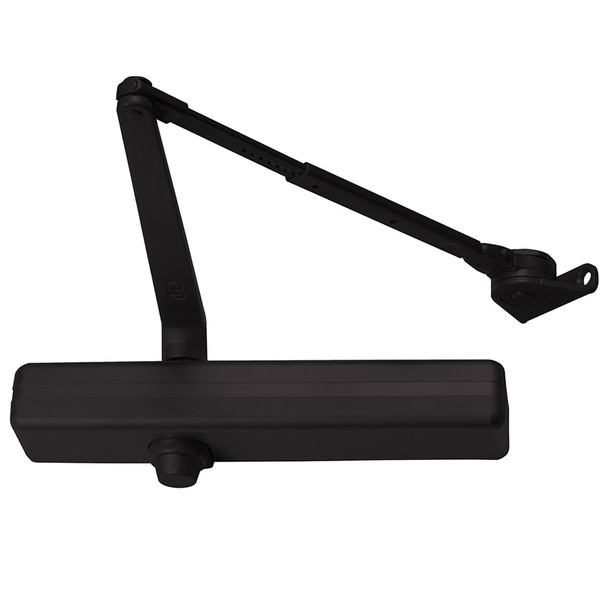

The LCN 1461-H is a Grade 1 surface-mounted door closer designed for commercial and institutional buildings. Its cast iron body, adjustable spring strength (sizes 1-6), and all-weather fluid make it suitable for both interior doors up to 5 feet and exterior doors up to 4 feet, solving the need for a reliable, durable closer that meets ADA requirements.
The 1461-H installs on the hinge side with regular, top jamb, or parallel arm options for right or left swinging doors. As an authorized LCN dealer, E.D. Locks provides expert installation guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure proper setup and long-term performance. Optional finishes and SRI primer for corrosive environments are available.
Specifications
- Grade: 1
- Body Material: Cast iron
- Piston Diameter: 1-1/4 inches
- Pinion Journal Diameter: 3/4 inch
- Spring Adjustment: Sizes 1-6
- Cycle Rating: 2,000,000
- Interior Door Capacity: Up to 5 feet
- Exterior Door Capacity: Up to 4 feet
- Installation Options: Regular arm, top jamb, parallel arm
- Finish: Black standard; optional powder coat and plated finishes
- ADA Compliant: Yes
