Description

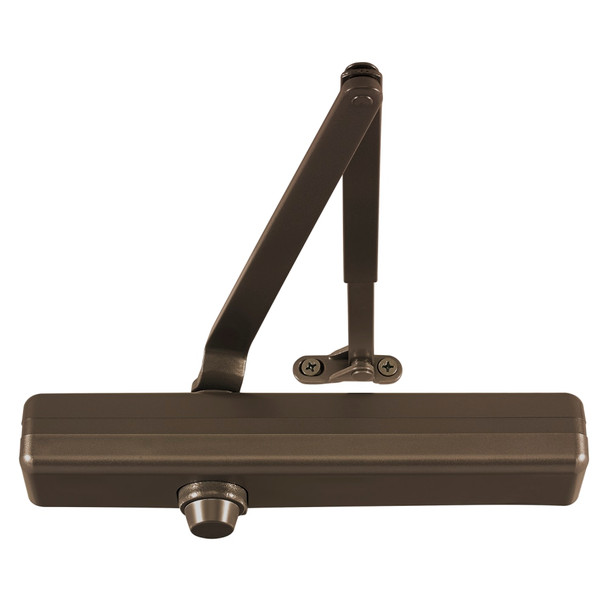

The LCN 1461-HD is a Grade 1 universal surface-mounted door closer designed for commercial and institutional applications on both interior and exterior doors. Its cast iron body, adjustable spring strength (sizes 1-6), and non-handed, fully reversible design make it ideal for facilities managing multiple door types and swing directions.
Compatible with doors up to 5'0" interior and 4'0" exterior, the 1461-HD installs on the hinge side, top jamb, or as a parallel arm closer. Independent adjustment valves control backcheck, closing, and latching speeds. As an authorized LCN dealer, E.D. Locks offers expert installation guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure optimal performance and compliance with ADA requirements.
Specifications
- Grade: 1
- Body: Cast iron with full compliment bearing
- Piston diameter: 1-1/4 inch
- Pinion journal: 3/4 inch diameter, heat treated
- Spring sizes: Adjustable 1 to 6, factory set to 3
- Cycle rating: 2,000,000
- Interior door capacity: Up to 5'0"
- Exterior door capacity: Up to 4'0"
- Finish: Dark bronze
- Installation options: Regular arm, top jamb, parallel arm
- Mounting: Hinge side, reversible for right or left swing
- ADA compliant: Yes
- Included: Slim line plastic cover, self-reaming and tapping screws, stick-on template
- Cush-N-Stop function: Built-in stop incorporated into arm
