Description

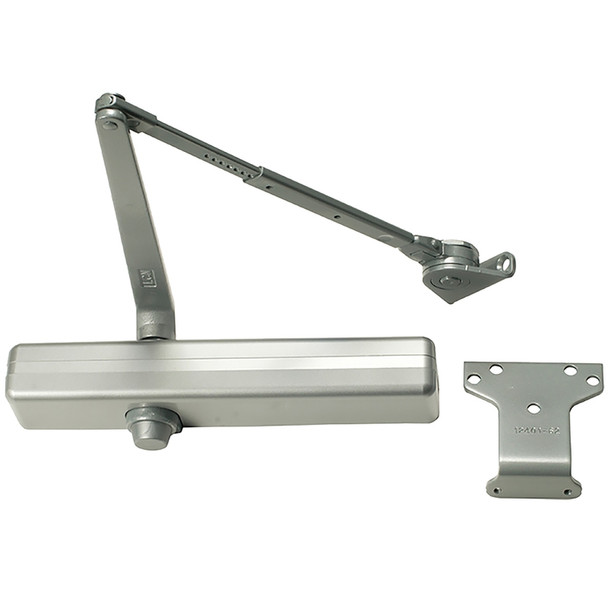

The LCN 1461-HW/PA is a Grade 1 universal surface-mounted door closer engineered for commercial and institutional applications. Its cast iron body, adjustable spring (sizes 1-6), and all-weather fluid make it ideal for both interior and exterior doors up to 5'0" and 4'0" respectively. Perfect for facilities managers and building owners seeking reliable, ADA-compliant door control.
This closer is fully reversible and non-handed, mounting on the hinge side or top jamb with regular, slim line, or parallel arm options for either hand swing. Independent adjustment valves allow field tuning of backcheck, closing, and latching speeds. As an authorized LCN dealer, E.D. Locks provides expert installation guidance and custom finish options. Contact sales@edlocks.com or call 1-877-207-6067 for sizing assistance and free shipping on orders over $450.
Specifications
- Grade: 1
- Body: Cast iron with full compliment bearing
- Piston Diameter: 1-1/4 in.
- Pinion Journal: 3/4 in. diameter, single heat treated
- Spring Range: Adjustable sizes 1-6, factory set to 3
- Interior Door Capacity: Up to 5'0"
- Exterior Door Capacity: Up to 4'0"
- Fluid: All-weather
- Cycle Rating: Tested to 2,000,000 cycles
- Adjustment Valves: Backcheck, closing, and latching (concealed)
- Mounting: Hinge side, top jamb, or parallel arm
- Hand: Universal, fully reversible
- Features: Cush-N-Stop function, stick-on template, ADA compliant
- Finishes: Standard, optional powder coat, or plated on designer series
- Optional: SRI primer for corrosive conditions
