Description

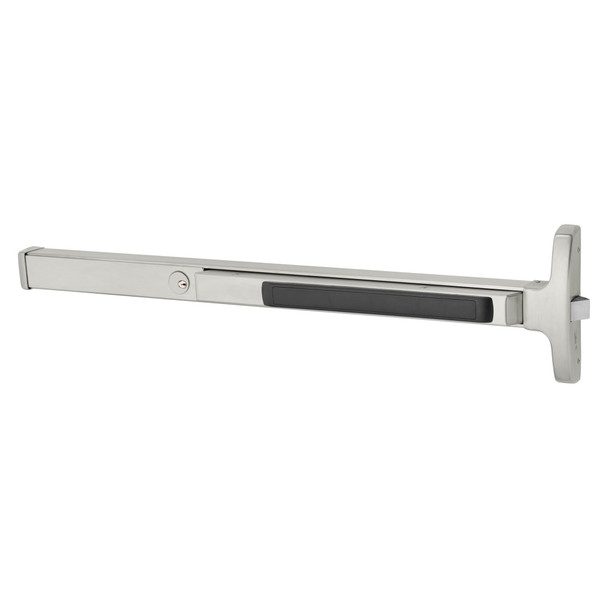

The Sargent 16-8504F 32D is a heavy-duty rim exit device built for commercial facilities demanding code-compliant emergency egress hardware. Ideal for wood or metal doors, this Grade 1 device combines modular construction with minimal moving parts to deliver maintenance-free operation and lasting security throughout the building lifecycle.
Sized for 24" to 32" door widths (no cutting required at 32"), it installs on 1-3/4" thick doors and accepts optional delayed egress, alarmed exit, and electric latch retraction features. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert sizing, compatibility verification, and authorized dealer support.
Specifications
- Model: 16-8504F 32D
- Brand: Sargent
- Type: Rim Exit Device
- Rail Configuration: E Rail
- Door Width Range: 24" to 32" (61cm to 81cm)
- No-Cut Width: 32"
- Compatible Door Types: Wood or metal
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 1-3/4" (44mm)
- Grade: ANSI/BHMA Grade 1
- Features: Modular construction, maintenance-free, accepts delayed egress and alarmed exit options
