Description

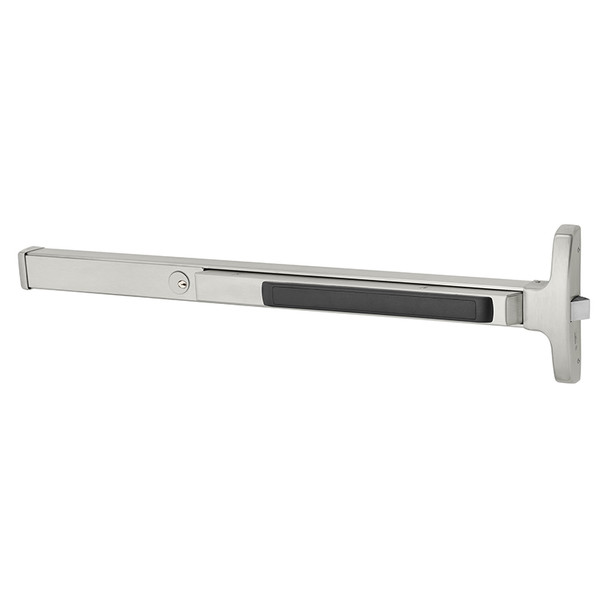

The Sargent 16-8504J 32D is a heavy-duty rim exit device designed for wood or metal doors requiring Grade 1 security and durability. Ideal for commercial facilities, hospitals, schools, and multi-tenant buildings, it provides reliable emergency egress while exceeding ANSI/BHMA Grade 1 cycle and strength requirements. Its modular construction minimizes maintenance needs.
This rim configuration fits doors 37 to 42 inches wide with no cutting required for 42-inch doors. Compatible with 1.75-inch thick doors; thicker doors require special ordering. As an authorized Sargent dealer, E.D. Locks offers expert guidance on configuration options including delayed egress, alarmed, and electric latch retraction features. Contact sales@edlocks.com or call 1-877-207-6067 for application assistance and fast shipping.
Specifications
- Brand: Sargent
- Model: 16-8504J 32D
- Type: Rim Exit Device
- Configuration: J Rail
- Door Width: 37 to 42 inches
- No Cutting Required: 42-inch doors
- Door Thickness: 1.75 inches (44mm) minimum
- Door Types: Wood or metal
- Minimum Stile: 1.75 inches (44mm)
- Grade: ANSI/BHMA Grade 1
- Features: Modular construction, maintenance-free, delayed egress/alarmed/electric latch retraction options available
