Description

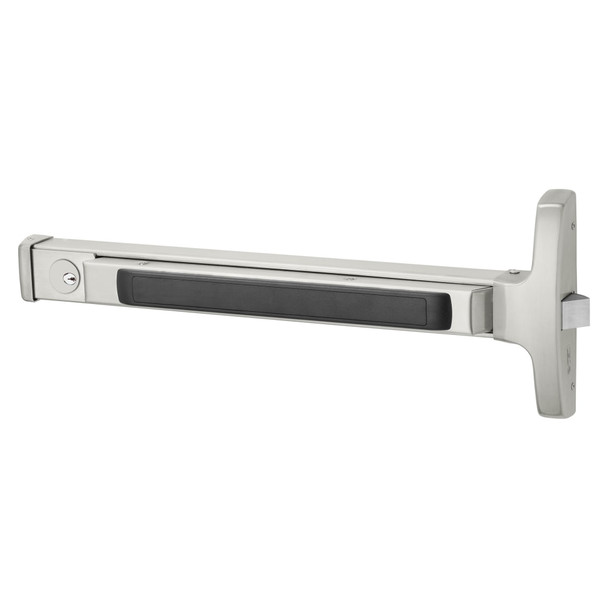

The Sargent 16-8510E rim exit device delivers Grade 1 security and durability for wood or metal doors up to 1-3/4" thick. Ideal for commercial facilities requiring reliable egress hardware, this heavy-duty solution features modular construction with minimal moving parts, ensuring maintenance-free operation throughout the building's life.
Available in E, F, J, and G rail configurations for doors 24" to 48" wide, the 16-8510E installs without cutting for standard door sizes. Sargent 80 Series devices exceed ANSI/BHMA Grade 1 cycle and strength requirements. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, keying coordination, and installation guidance.
Specifications
- Door Types: Wood or metal, 1-3/4" (44mm) thick minimum; over 1-3/4" specify thickness and order as 31- prefix
- Minimum Stile Width: 1-3/4" (44mm)
- E Rail: 24" to 32" (61cm to 81cm); no cutting for 32" door
- F Rail: 33" to 36" (84cm to 91cm); no cutting for 36" door
- J Rail: 37" to 42" (94cm to 107cm); no cutting for 42" door
- G Rail: 43" to 48" (110cm to 122cm); no cutting for 48" door
- Grade: ANSI/BHMA Grade 1
- Configuration: Rim
