Description

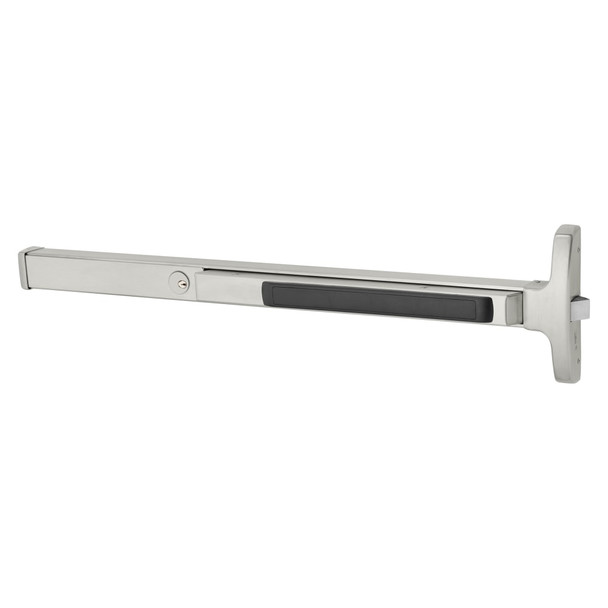

The Sargent 16-8510J 32D rim exit device delivers heavy-duty security for wood and metal doors in commercial and institutional facilities. Engineered to exceed ANSI/BHMA Grade 1 requirements, this durable solution features modular construction with minimal moving parts, ensuring maintenance-free operation and long-term reliability across the building lifecycle.
This J-rail model fits 37" to 42" door widths with no cutting required for 42" doors; doors must be at least 1-3/4" thick with 1-3/4" minimum stile width. E.D. Locks provides expert guidance on sizing, keying options, and compatibility with delayed egress, alarmed, or electric latch retraction configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Sargent
- Series: 80 Series
- Configuration: Rim Exit Device
- Rail Type: J Rail
- Door Width Range: 37" to 42" (94cm to 107cm)
- No Cutting Required: 42" doors
- Door Thickness: 1-3/4" (44mm) minimum
- Minimum Stile Width: 1-3/4" (44mm)
- Door Types: Wood or metal
- Grade: Exceeds ANSI/BHMA Grade 1
- Construction: Modular with few moving parts
