Description

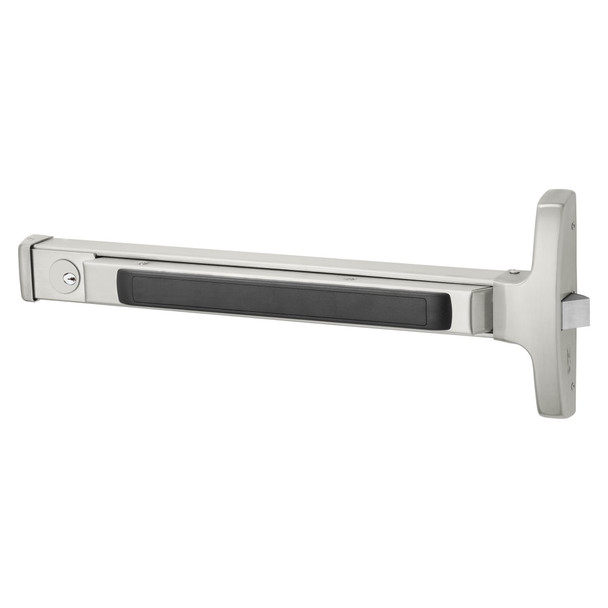

The Sargent 80 Series rim exit device delivers Grade 1 security and durability for wood or metal doors in high-traffic facilities. Built with modular construction and minimal moving parts, this heavy-duty panic hardware exceeds ANSI/BHMA standards for cycle and strength, requiring virtually no maintenance while providing reliable egress control for the life of your building.
Designed for 1 3/4 inch thick doors with E Rail compatibility (24 inch to 32 inch widths; no cutting required at 32 inches). Options include delayed egress, alarmed exit, and electric latch retraction for specialized applications. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for door thickness verification, rail selection, and custom configuration support.
Specifications
- Series: 80 Series
- Model: 16-8515G 32D
- Type: Rim Exit Device
- Door Compatibility: Wood or metal, 1 3/4 inch (44mm) thick
- Minimum Stile Width: 1 3/4 inch (44mm)
- E Rail Width Range: 24 inch to 32 inch (61cm to 81cm)
- Standard Width: 32 inch (no cutting required)
- Certifications: Exceeds ANSI/BHMA Grade 1
- Features: Modular construction, maintenance-free, options for delayed egress, alarmed exit, electric latch retraction
