Description

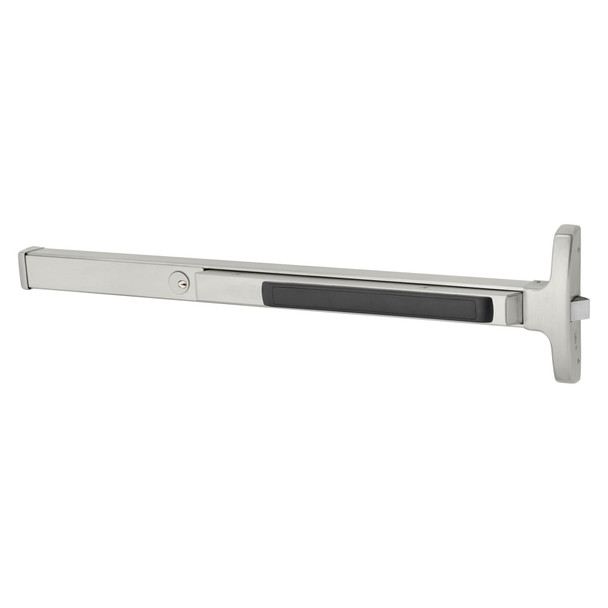

The Sargent 16-8515J 32D rim exit device delivers Grade 1 security for wood or metal doors 1 3/4" thick. Built for facilities demanding durability and compliance, this heavy-duty device features modular construction with few moving parts, requiring minimal maintenance while providing reliable emergency egress and perimeter security throughout the building's life.
The J-rail configuration fits doors 37" to 42" wide with no cutting required for 42" doors. Compatible with wood or metal construction, 1 3/4" minimum stile width. As an authorized Sargent dealer, E.D. Locks offers expert guidance on rail selection, installation, and delayed egress or alarmed options. Contact sales@edlocks.com or call 1-877-207-6067 for specification help and fast shipping.
Specifications
- Model: 16-8515J 32D
- Brand: Sargent
- Type: Rim Exit Device
- Series: 80 Series
- Rail: J Rail
- Door Width Range: 37" to 42" (94cm to 107cm)
- No-Cut Width: 42" door
- Door Thickness: 1 3/4" (44mm)
- Door Type: Wood or Metal
- Minimum Stile Width: 1 3/4" (44mm)
- Rating: ANSI/BHMA Grade 1
- Configuration: Rim
