Description

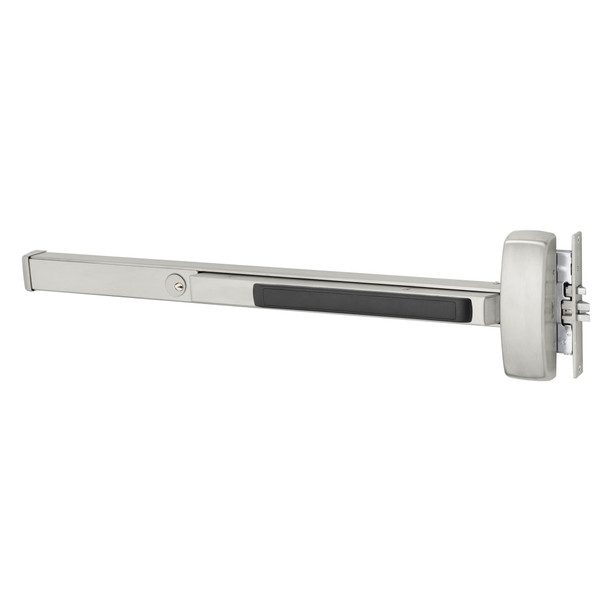

The Sargent 16-8904F mortise exit device delivers Grade 1 security for wood and metal doors in commercial and institutional buildings. This left-hand reverse (LHR) unit installs in 1-3/4" thick doors and suits openings 24-32". Built for high-traffic facilities requiring durable, maintenance-free operation that meets ANSI/BHMA standards and outlasts the building itself.
Modular construction with few moving parts ensures reliable performance with minimal maintenance. Sargent 80 Series devices support optional delayed egress, alarmed exit, and electric latch retraction for specialized applications. As an authorized Sargent dealer, E.D. Locks provides expert product matching and installation guidance. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for compatibility verification and ordering assistance.
Specifications
- Brand: Sargent
- Model: 16-8904F
- Configuration: Mortise
- Handedness: Left Hand Reverse (LHR)
- Finish: 32D (Satin Stainless Steel)
- Door Thickness: 1-3/4" (44mm)
- Door Width Range: 24" to 32" (61-81cm)
- Minimum Stile Width: 4-1/2" (114mm)
- Standard: ANSI/BHMA Grade 1
- Door Types: Wood or Metal
