Description

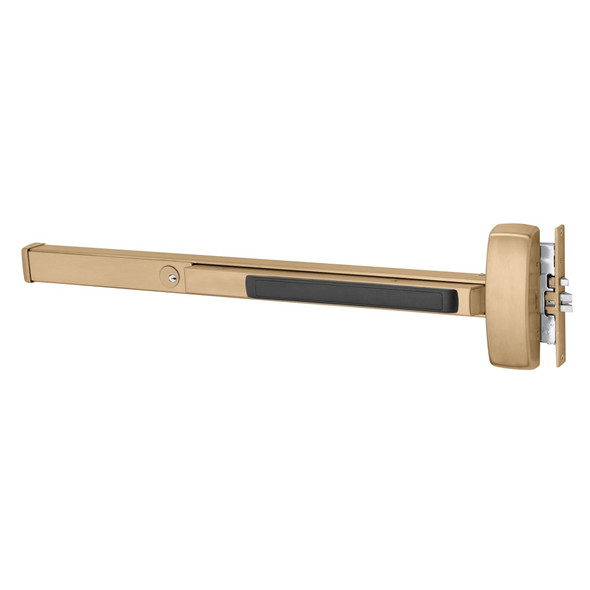

The Sargent 80 Series mortise exit device is engineered for commercial buildings that demand lasting security and reliability. This right-hand reverse (RHR) model exceeds ANSI/BHMA Grade 1 requirements and suits wood or metal doors 1 3/4 inches thick. Its modular design minimizes moving parts, reducing maintenance while delivering institutional-grade egress control for offices, healthcare facilities, schools, and multi-tenant buildings.
The 16-8913F fits E Rail configurations on 24 to 32 inch doors without cutting. Optional features include delayed egress, alarmed exit, and electric latch retraction for specialized applications. As an authorized Sargent dealer, E.D. Locks provides expert product selection and installation guidance. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for specification confirmation and pricing on bulk orders.
Specifications
- Model: 16-8913F
- Configuration: Mortise, Right-Hand Reverse (RHR)
- Compatible Door Thickness: 1 3/4 inches (44mm)
- Rail Type: E Rail
- Door Width Range: 24 to 32 inches (61cm to 81cm)
- No-Cut Width: 32 inches
- Minimum Stile Width: 4 1/2 inches (114mm)
- Grade: ANSI/BHMA Grade 1
- Door Types: Wood or metal
