Description

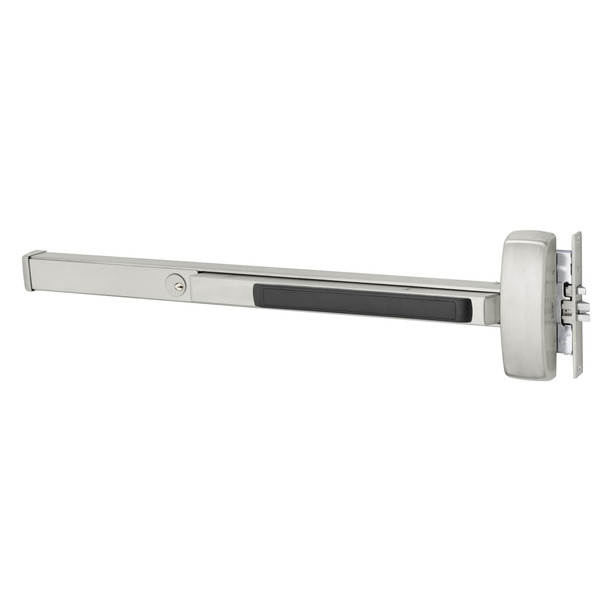

The Sargent 16-8973G LHR 32D is a mortise exit device built for facilities demanding heavy-duty security and durability. Ideal for commercial buildings, hospitals, and high-traffic venues, it exceeds ANSI/BHMA Grade 1 standards for strength and cycle life. Modular construction and minimal moving parts mean less maintenance and maximum reliability.
This mortise model fits wood or metal doors 1 3/4" thick with minimum 4 1/2" stile width; the G rail accommodates 43-48" door widths with no cutting required for 48" doors. Options include delayed egress, alarmed exit, and electric latch retraction. As an authorized Sargent dealer, E.D. Locks provides expert guidance and support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Model: 16-8973G
- Configuration: Mortise
- Handing: LHR (Left Hand Reverse)
- Finish: 32D (Satin Stainless Steel)
- Door Thickness: 1 3/4" (44mm)
- Minimum Stile Width: 4 1/2" (114mm)
- Rail Type: G Rail
- Door Width Range: 43" to 48" (110cm to 122cm)
- Standards: Exceeds ANSI/BHMA Grade 1
- Series: 80 Series
