Description
The Sargent 80 Series exit device is a Grade 1 rated emergency exit solution designed for wood and metal doors in commercial and institutional buildings. Built for durability and code compliance, this rim-mounted device provides reliable egress control with modular construction and minimal maintenance, ideal for facilities requiring long-term security and performance.
This right-hand reverse (RHR) model fits standard 1-3/4 inch thick doors and accommodates 24 to 32 inch door widths without cutting. As an authorized Sargent dealer, E.D. Locks offers expert installation guidance, compatibility verification, and access to optional features like delayed egress and electric latch retraction. Contact our team at sales@edlocks.com or 1-877-207-6067 for free consultation and sizing assistance.
Specifications

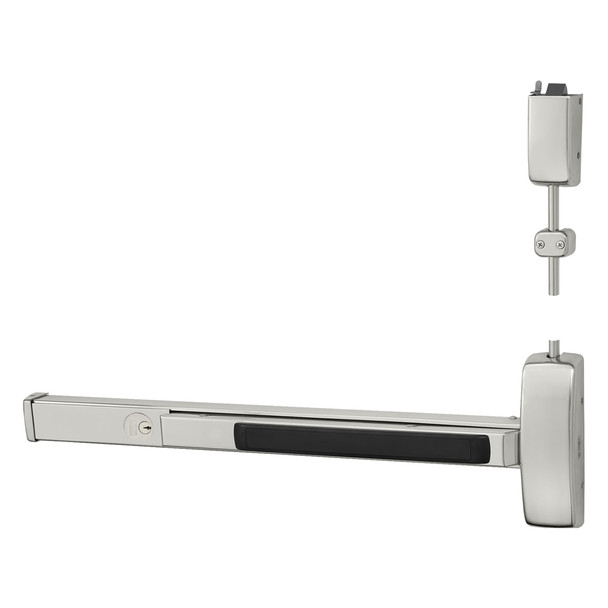

- Model: 16-NB8713F ETJ RHR 32D
- Series: Sargent 80
- Configuration: Rim with E Rail
- Handing: Right-Hand Reverse
- Door Thickness: 1-3/4 inch (44mm)
- Door Width: 24 to 32 inches (61-81cm)
- No cutting required for 32 inch doors
- Grade: ANSI/BHMA Grade 1
- Compatible with: Wood or metal doors
- Minimum stile: 4-1/2 inch with trim, 3-1/2 inch without trim
