Description

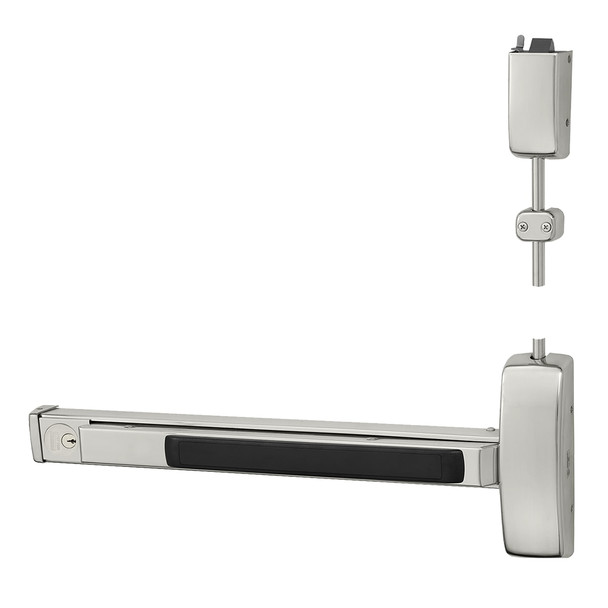

The Sargent 80 Series exit device is a heavy-duty push bar solution for wood and metal doors in commercial and institutional facilities. Ideal for buildings that demand maximum security and durability, this Grade 1 rated device features modular construction with few moving parts, delivering maintenance-free operation and reliable egress control that lasts the life of the building.
This right-hand reverse model fits 1-3/4" thick doors with 32" door width (E Rail, no cutting required). The Sargent 80 Series supports optional configurations including delayed egress, alarmed exit, and electric latch retraction for specialized applications. As an authorized E.D. Locks & Security dealer, we provide expert sizing guidance and installation support at sales@edlocks.com or 1-877-207-6067 to ensure your exit device meets local code and facility requirements.
Specifications
- Brand: Sargent
- Model: 16-NB8715E RHR 32D
- Configuration: Right-Hand Reverse (RHR), E Rail
- Door Thickness: 1-3/4" (44mm)
- Door Width: 24" to 32" (no cutting for 32")
- Door Type: Wood or metal
- Minimum Stile: 4-1/2" (114mm) with trim, 3-1/2" without trim
- Grade: ANSI/BHMA Grade 1
- Options: Delayed egress, alarmed exit, electric latch retraction
