Description

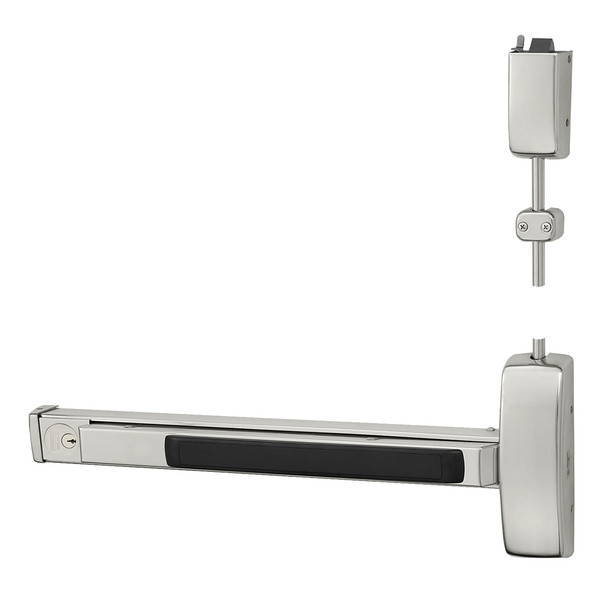

The Sargent 80 Series exit device is a heavy-duty push bar solution designed for commercial facilities requiring Grade 1 security and durability. Built for wood or metal doors 1-3/4" to 2-1/4" thick, this rim-mounted device exceeds ANSI/BHMA standards with modular construction, minimal moving parts, and maintenance-free operation. Ideal for schools, offices, and institutional buildings.
The 16-NB8743E RHR model accommodates E-rail doors 24" to 32" wide with no cutting required for 32" openings. Compatible with standard door prep and available with optional delayed egress, alarm, or electric latch retraction features. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, configuration guidance, and competitive pricing.
Specifications
- Brand: Sargent
- Model: 16-NB8743E RHR 32D
- Type: Rim Exit Device
- Door Thickness: 1-3/4" to 2-1/4" (specify for over 1-3/4")
- Door Width (E Rail): 24" to 32" (no cut required for 32")
- Minimum Stile: 4-1/2" with trim, 3-1/2" without trim
- Grade: ANSI/BHMA Grade 1
- Door Material: Wood or metal
