Description

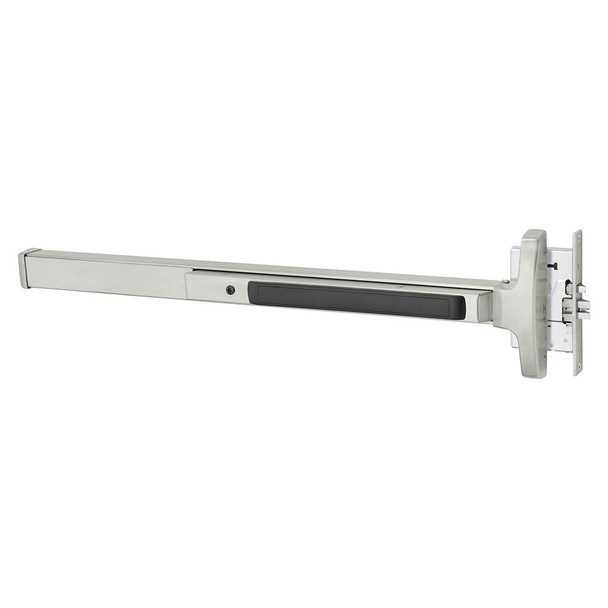

The Sargent 80 Series 19-8374J is a heavy-duty mortise exit device engineered for commercial buildings requiring ANSI/BHMA Grade 1 rated security and durability. Its modular construction with minimal moving parts delivers maintenance-free operation and superior strength for wood or metal doors, making it ideal for high-traffic facilities prioritizing reliable egress control.
This right-hand reverse (RHR) model fits 32" doors without cutting and accommodates 1-3/4" thick doors with a 4-1/2" minimum stile width. The 80 Series supports optional delayed egress, alarmed exit, and electric latch retraction features. Contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067 for application-specific guidance and expert configuration support.
Specifications
- Brand: Sargent
- Model: 19-8374J RHR 32D
- Type: Mortise Exit Device
- Series: 80 Series
- Configuration: Right-Hand Reverse (RHR)
- Door Width: 32" (61cm to 81cm with J Rail)
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Door Types: Wood or metal
- Rating: ANSI/BHMA Grade 1
- Features: Modular construction, maintenance-free, supports delayed egress, alarmed exit, and electric latch retraction options
