Description

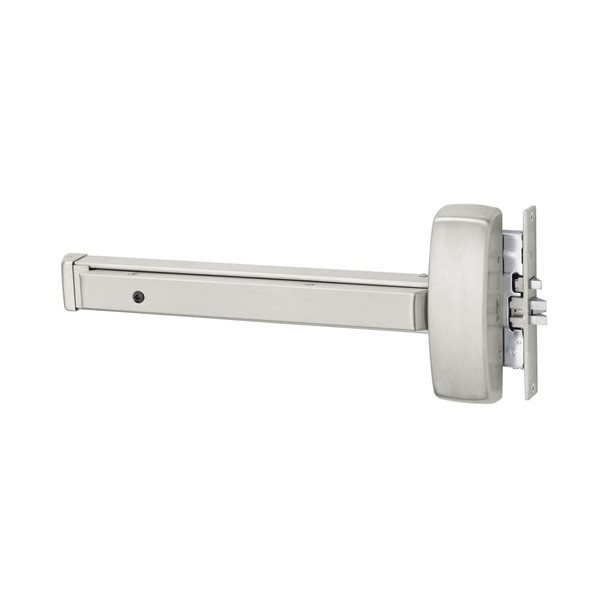

The Sargent 19-8913E is a mortise exit device engineered for high-traffic commercial facilities demanding durability and compliance. Designed for wood or metal doors 1-3/4" thick with minimum 4-1/2" stiles, this Grade 1 certified device provides push-to-exit operation with modular construction and minimal maintenance, ideal for offices, schools, and institutional buildings.
The 19-8913E fits E-rail doors 24" to 32" wide with no cutting required at 32". Choose from delayed egress, alarmed exit, or electric latch retraction options for specialized applications. As an authorized Sargent dealer, E.D. Locks provides expert specification guidance and fast shipping. Contact sales@edlocks.com or 1-877-207-6067 for door width compatibility and configuration assistance.
Specifications
- Series: Sargent 80
- Configuration: Mortise
- Hand: Left Hand Reverse (LHR)
- Finish: 32D (Satin Stainless Steel)
- Door Thickness: 1-3/4" (44mm)
- Door Width Range (E Rail): 24" to 32" (61cm to 81cm)
- Minimum Stile Width: 4-1/2"
- ANSI/BHMA Rating: Grade 1
