Description
The Sargent 80 Series exit device is a heavy-duty push bar solution designed for facilities requiring Grade 1 security and durability. Built with modular construction and minimal moving parts, this rim-mounted device exceeds ANSI/BHMA Grade 1 cycle and strength requirements, making it ideal for wood or metal doors in high-traffic commercial and institutional environments.
This right-hand reverse (RHR) model fits 24-32 inch door widths without cutting. Compatible with 1-3/4 inch thick doors; thicker doors require a 31-prefix order. As an authorized Sargent dealer, E.D. Locks offers expert installation guidance and can help you select optional features like delayed egress, alarmed exit, or electric latch retraction. Contact us at sales@edlocks.com or 1-877-207-6067 for compatibility questions and support.
Specifications

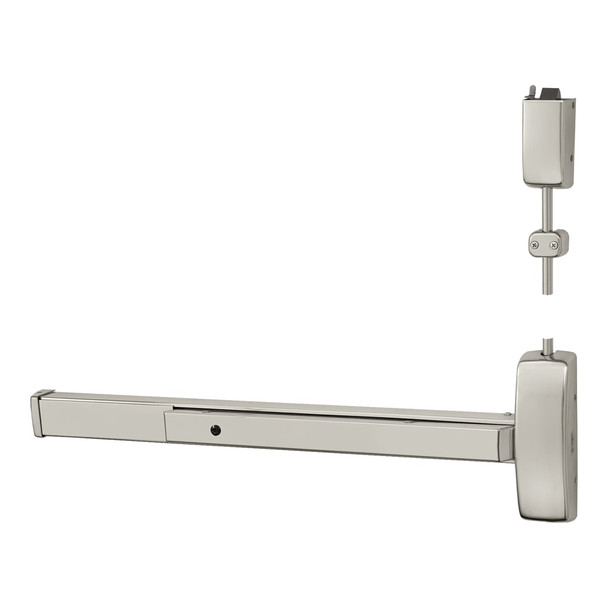

- Model: 19-NB8706F ETE RHR 32D
- Configuration: Rim, right-hand reverse
- Door Thickness: 1-3/4 inch (44mm); over 1-3/4" to 2-1/4" requires 31-prefix order
- Door Width: 24-32 inches (61-81cm); no cutting required for 32" door
- Door Types: Wood or metal
- Stile Requirements: 4-1/2 inch minimum with trim; 3-1/2 inch minimum without trim
- Certification: Exceeds ANSI/BHMA Grade 1 requirements
